AT Shift Lock Solenoid and "P" Range Switch: Installation

Clean all the parts before assembly.
Insert the solenoid unit terminals to the harness connector.

Fig 1: Inserting Solenoid Unit Terminals To Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the solenoid unit.
NOTE:
- Insert the solenoid unit while raising the shift lock plate upward by finger, and insert the tip of cushion solenoid into the hole of shift lock plate.
- Apply 0.2 g (0.007 oz) of Multemp D to the tip of cushion solenoid.
- After installation, make sure that the tip of cushion solenoid is securely inserted in the shift lock plate by visually checking from the side of plate COMPL.

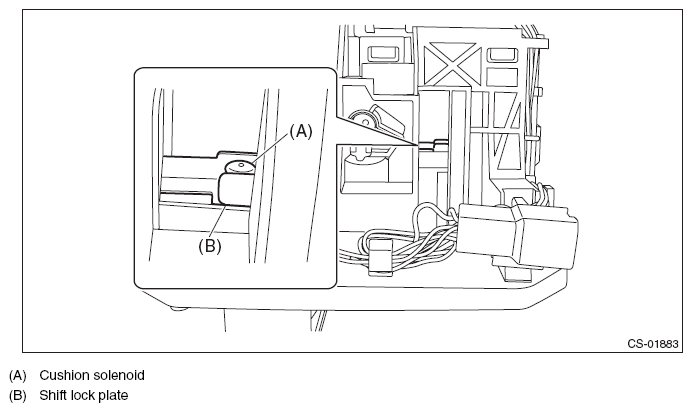

Fig 2: Inserting Tip Of Cushion Solenoid Into Hole Of Shift Lock Plate
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Cushion Solenoid And Shift Lock Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the harness to the select cover COMPL.

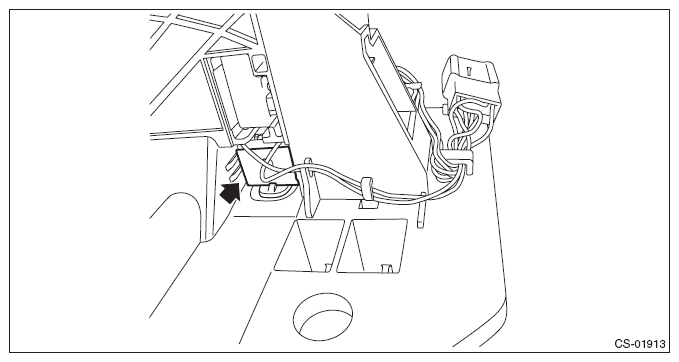

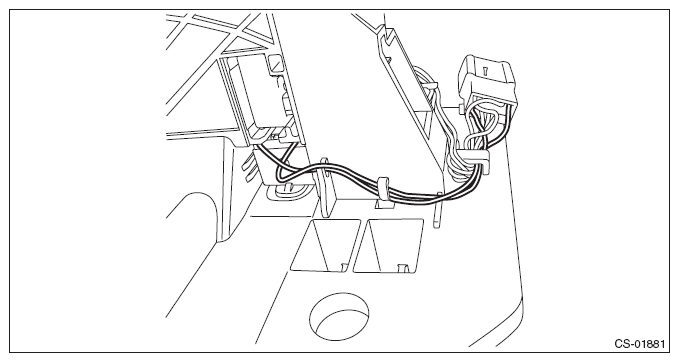

Fig 4: Harness And Select Cover COMPL
Courtesy of SUBARU OF AMERICA, INC.
Attach the harness connector.

Fig 5: Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the spacer and the gasket. <Ref. to INSTALLATION , Select Lever.>
Install the select lever. <Ref. to INSTALLATION , Select Lever.>
