MT Gear Select Cable: Adjustment

NOTE: Two persons are required to perform the MT gear select cable adjustment. Only the step 6 requires two workers.

Move the shift lever to the 6th.
Remove the plate cable assembly.

Fig 1: Locating Plate Cable Assembly Nuts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear select cable.
NOTE: Push the MT gear select cable in the direction of arrow, and remove it.

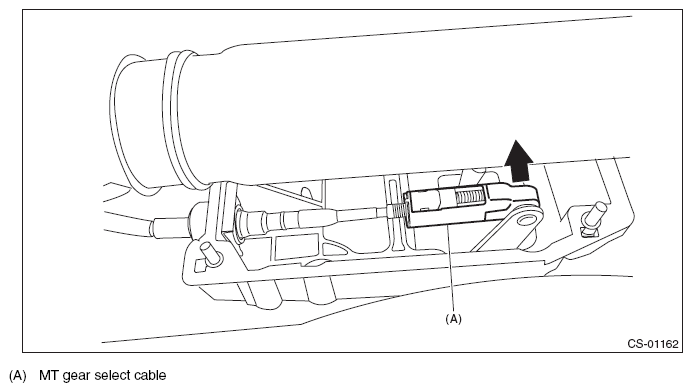

Fig 2: Removing MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Measure the exposed length (a) of MT gear select cable.

Fig 3: Measuring Exposed Length Of MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
With the slider (green) moved in the direction of arrow, release the lock piece (pink) using a flat tip screwdriver or equivalent tool.
CAUTION: Lock piece is easily damaged for the resin. If the lock piece is damaged, replace the MT gear select cable with a new one.

NOTE: Rotate the MT gear select cable to 180 degrees, slide the slider in the direction of the arrow and push the claw of lock piece.

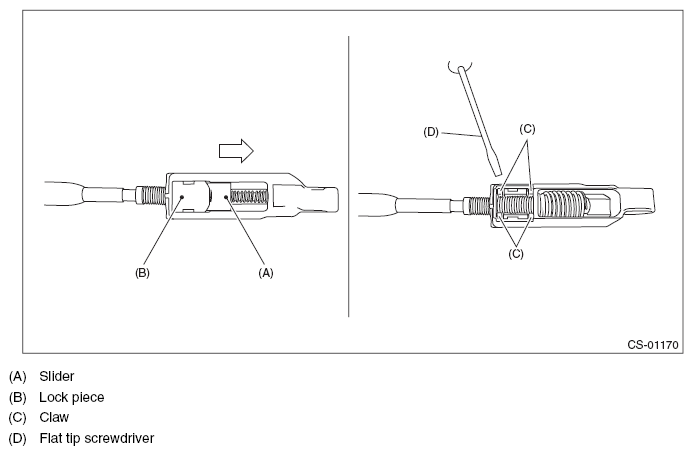

Fig 4: Releasing Lock Piece Using Flat Tip Screw Driver
Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear select cable to the select lever, with the lock piece released.

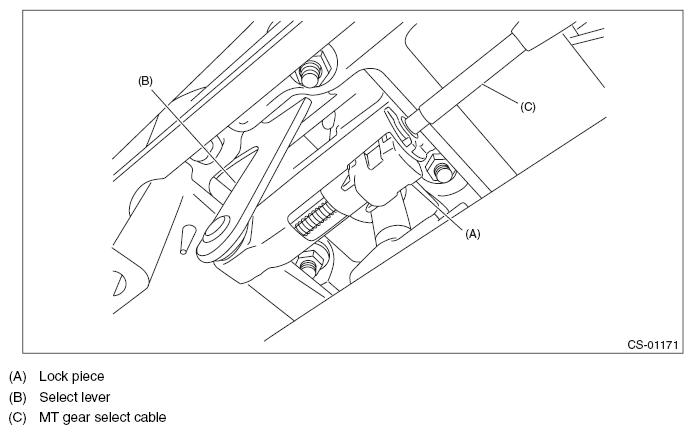

Fig 5: Lock Piece, Select Lever And MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Move the shift lever to the reverse side, keep the exposed length (a) of MT gear select cable to 11 mm (0.4 in), and push the lock piece.
NOTE: While pulling up the gear shift lever assembly slider, operate the lever to the reverse side.

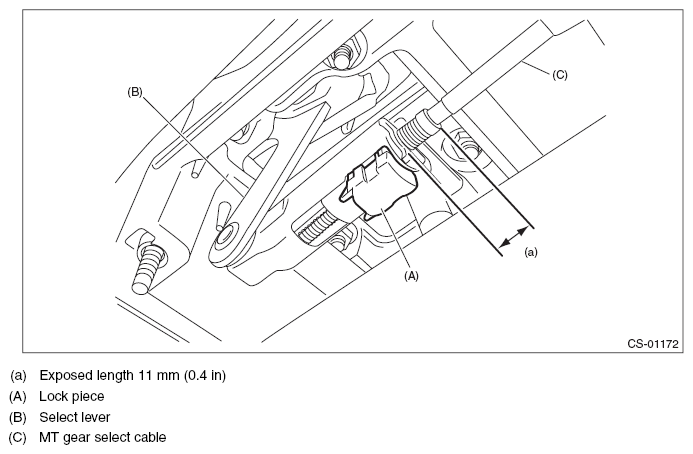

Fig 6: Exposed Length, Lock Piece, Select Lever And MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Shift to 5th ←→ 6th and reverse, and check for stuck.
If the shift operation is not smooth, readjust the exposed length (a) of the MT gear select cable referring to the figure below.

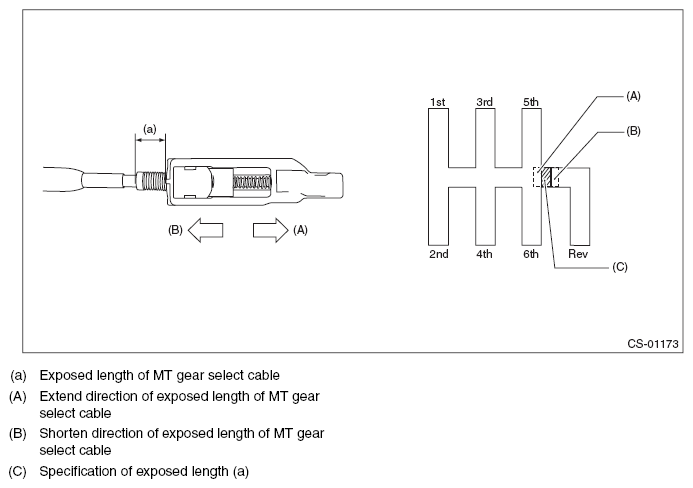

Fig 7: Readjusting Exposed Length Of MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
- If 5th or 6th gear cannot be selected when cable is pressed to reverse lock bracket:
  → Extend the exposed length (a) of MT gear select cable.
- If the shift lever does not move along the cranking line when it is operated from 4th → 5th gear:
  → Shorten the exposed length (a) of MT gear select cable.
NOTE: If it cannot adjust, replace the MT gear select cable.
If no fault is found in the shift and select operation, restore the vehicle.
