MT Gear Shift Lever: Installation

Install the gear shift lever assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

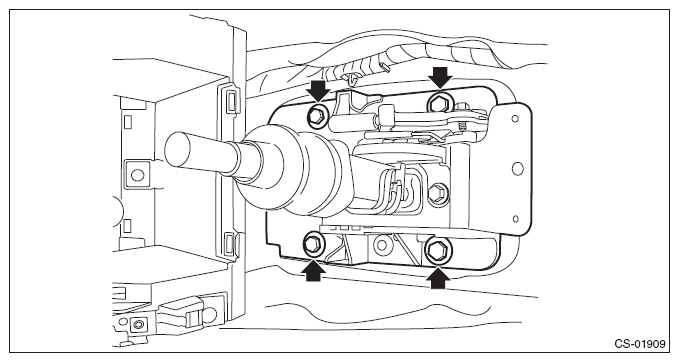

Fig 1: Locating Gear Shift Lever Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Install the cover cable assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Connect the MT gear shift cable and MT gear select cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not twist the cable inner excessively.

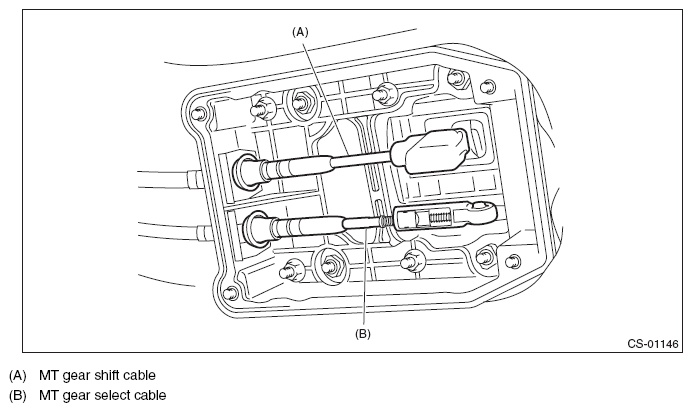

Fig 2: MT Gear Shift Cable And MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the plate cable assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the center exhaust pipe. <Ref. to INSTALLATION , Center Exhaust Pipe.>
Lower the vehicle.
Install the console front side cover assemblies RH and LH. <Ref. to INSTALLATION , Console Box.>
Install the console front cover assembly and the console box. <Ref. to INSTALLATION , Console Box.>
Install the gear shift knob by rotating it clockwise so that the distance "A" from the gear shift knob end surface to the slider end surface becomes the specified value or more.
CAUTION: Do not turn the gear shift knob excessively to prevent it from being damaged.

Specification:

11.5 mm (0.435 in)

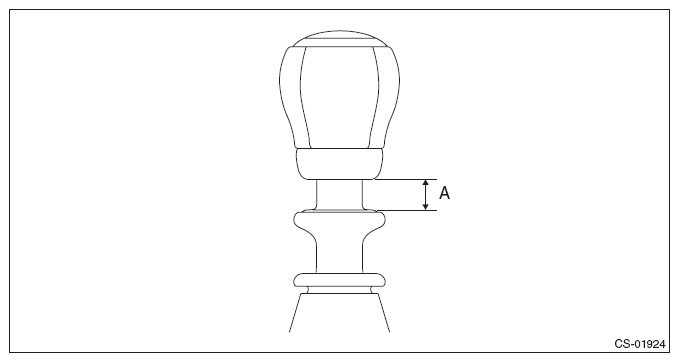

Fig 3: Specified Distance From Gear Shift Knob End Surface To Slider End Surface
Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Make sure the gears can be shifted accurately into each gear. Adjust the MT gear select cable, if the gears cannot be shifted correctly. <Ref. to ADJUSTMENT , MT Gear Select Cable.>
