MT Gear Shift Lever: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Lift up the vehicle.
Remove the center exhaust pipe. <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 1: Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate cable assembly.

Fig 2: Locating Plate Cable Assembly Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.
CAUTION: Be careful not to deform the cable inner.

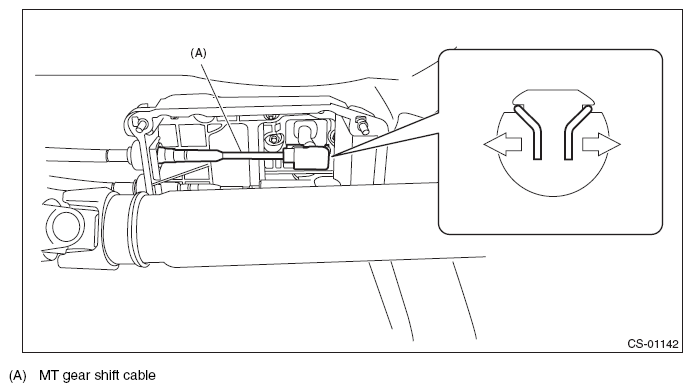

Fig 3: Removing Spring At MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the MT gear select cable from the gear shift lever assembly by pulling it in the direction of arrow in the figure.
CAUTION: Be careful not to deform the cable inner.

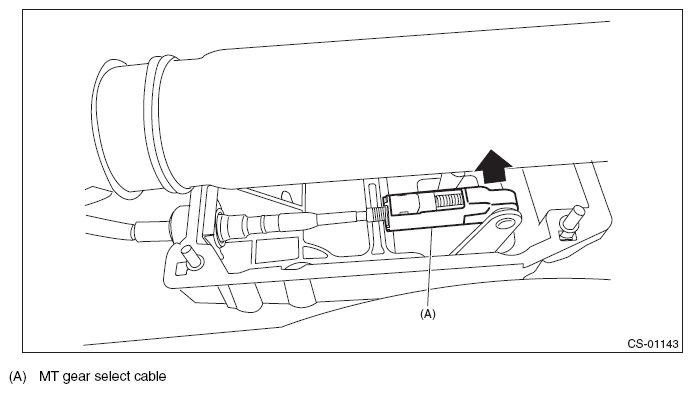

Fig 4: Removing MT Gear Select Cable From Gear Shift Lever Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the cover cable assembly.

Fig 5: Locating Cover Cable Assembly Nuts
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the shift knob.
Remove the console front cover assembly and console box. <Ref. to REMOVAL , Console Box.>
Remove the console front side cover assemblies RH and LH. <Ref. to REMOVAL , Console Box.>
Remove the bolts, and then remove the gear shift lever assembly from the vehicle.

NOTE: The MT gear shift lever cannot be disassembled.

Fig 6: Locating Gear Shift Lever Assembly Bolts
