Select Cable: Adjustment

Shift the select lever to "N" range.
Lift up the vehicle.
Remove the center exhaust pipe. (2.5 L model) <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the front exhaust pipe and rear exhaust pipe. (3.6 L model) <Ref. to REMOVAL , Front Exhaust Pipe.> <Ref. to REMOVAL , Rear Exhaust Pipe.>
Remove the center exhaust cover.

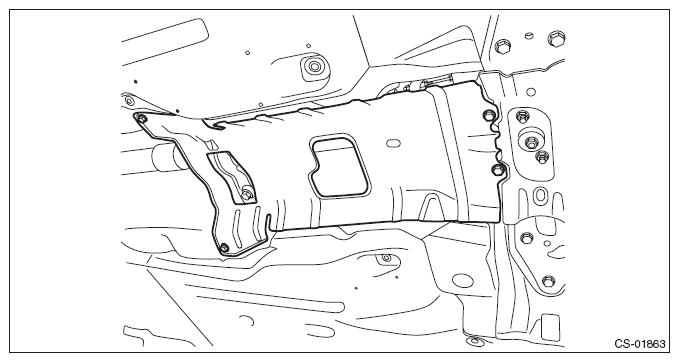

Fig 1: Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the nuts on both sides.

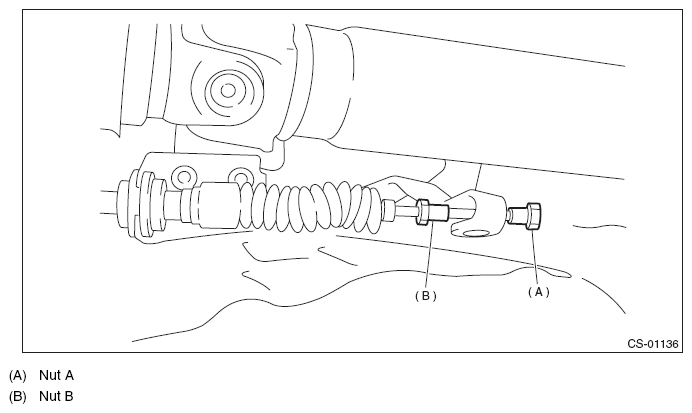

Fig 2: Cable With Nuts
Courtesy of SUBARU OF AMERICA, INC.
Turn the nut B until it lightly touches the connector.

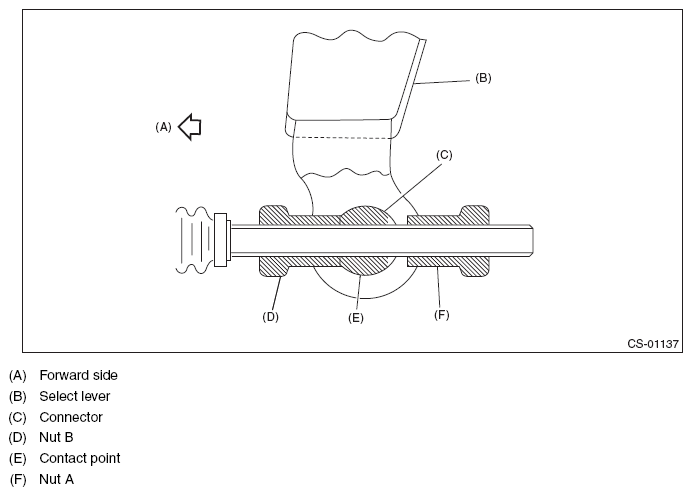

Fig 3: Select Lever, Connector, Nut And Contact Point
Courtesy of SUBARU OF AMERICA, INC.
Set a spanner wrench to the nut B so that it does not rotate, and then tighten the nut A.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

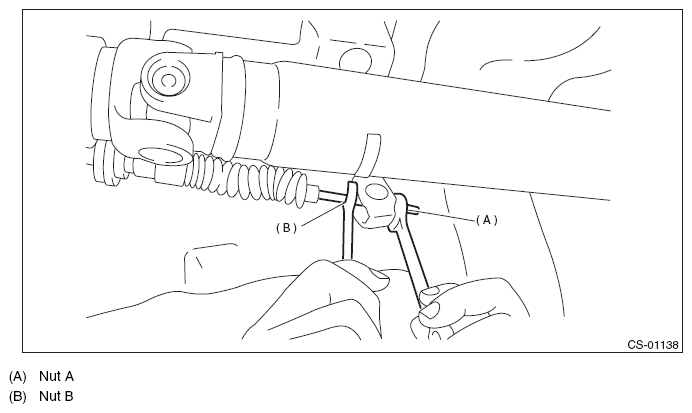

Fig 4: Setting Spanner Wrench To Nut B
Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the center exhaust pipe. (2.5 L model) <Ref. to INSTALLATION , Center Exhaust Pipe.>
Install the front exhaust pipe and rear exhaust pipe. (3.6 L model) <Ref. to INSTALLATION , Front Exhaust Pipe.> <Ref. to INSTALLATION , Rear Exhaust Pipe.>
