Select Cable: Removal

Shift the select lever to "N" range.
Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Lift up the vehicle.
Remove the center exhaust pipe. (2.5 L model) <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the front exhaust pipe and rear exhaust pipe. (3.6 L model) <Ref. to REMOVAL , Front Exhaust Pipe.> <Ref. to REMOVAL , Rear Exhaust Pipe.>
Remove the center exhaust cover.

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer from the shifter arm and remove the select cable from the shifter arm.

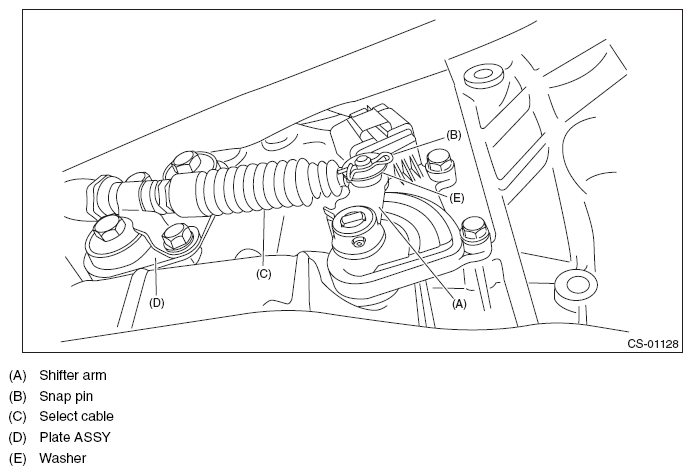

Fig 2: Shifter Arm, Snap Pin, Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the transmission case.

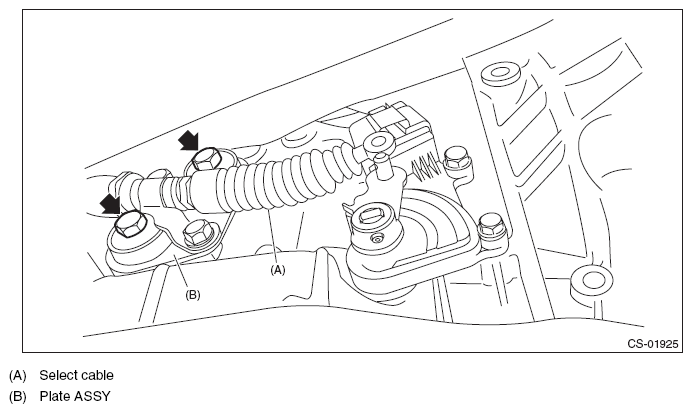

Fig 3: Identifying Plate Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from arm assembly.

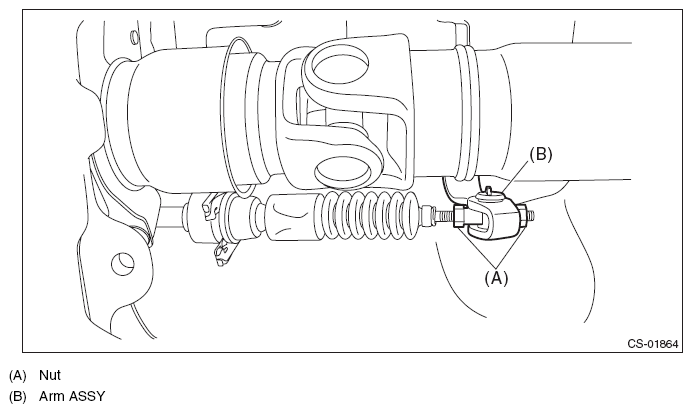

Fig 4: Identifying Nut And Arm Assembly
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp to remove the cable from bracket.

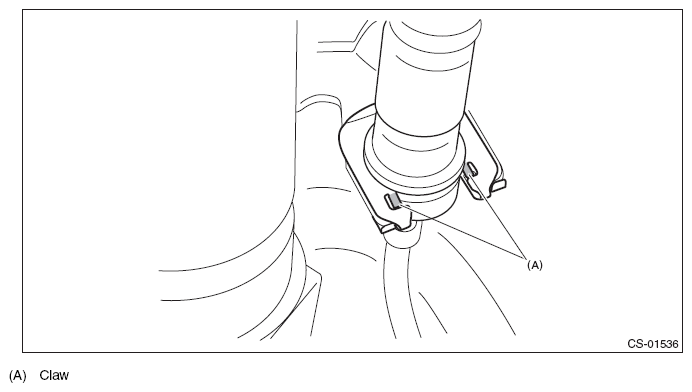

Fig 5: Identifying Claw Of Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
