Fuel Pump

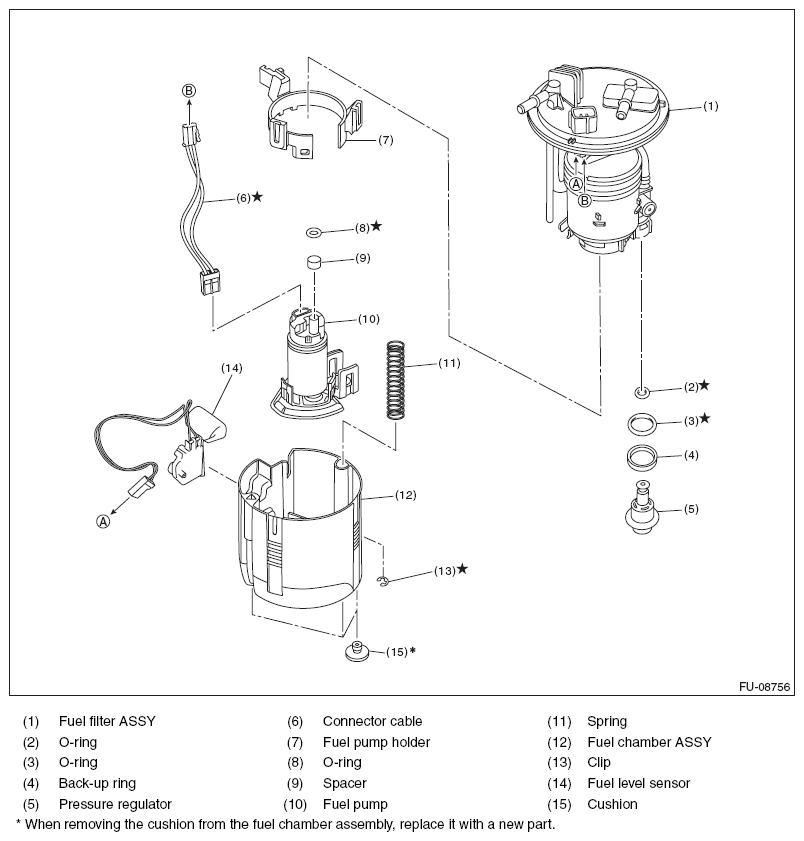

Fig 1: Exploded View Of Fuel Pump With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
