Intake Manifold: Assembly

Liquid gasket:

THREE BOND 1105 (Part No. 004403010) or equivalent

Tightening torque:

17 N.m (1.7 kgf-m, 12.5 ft-lb)

1. Install the purge control solenoid valve. <Ref. to INSTALLATION , Purge Control Solenoid Valve.>
2. Install the manifold absolute pressure sensor. <Ref. to INSTALLATION , Manifold Absolute Pressure Sensor.>
3. Install the EGR pipe B. <Ref. to EGR PIPE B , INSTALLATION, EGR Pipe.>
4. Install the EGR control valve. <Ref. to INSTALLATION , EGR Control Valve.>
5. Install the engine harness to the intake manifold. <Ref. to ENGINE HARNESS , COMPONENT, General Description.>
6. Install the fuel pipe assembly, and install the fuel injector pipe and the fuel hose. <Ref. to CONNECTING THE FUEL DELIVERY HOSE , INSTALLATION, Fuel Delivery and Evaporation Lines.>

   Tightening torque:

   T1: 1.25 N.m (0.1 kgf-m, 0.9 ft-lb)

   T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

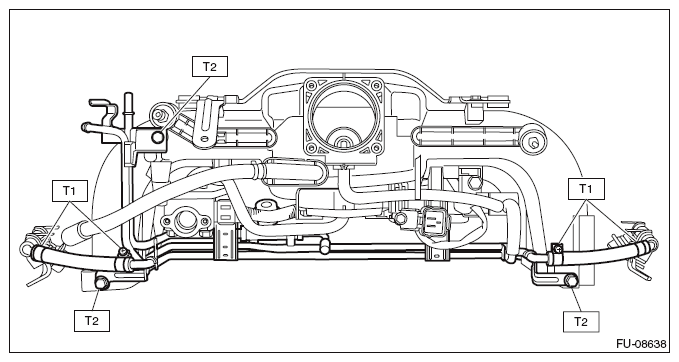

   Fig 1: Fuel Pipe Assembly Bolts With Torque Specification

   Courtesy of SUBARU OF AMERICA, INC.

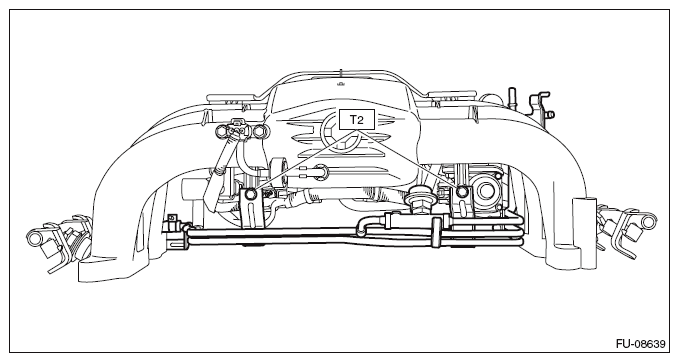

   Fig 2: Fuel Injector Pipe And Fuel Hose Bolts With Torque Specification

   Courtesy of SUBARU OF AMERICA, INC.
