Components With Torque Specifications

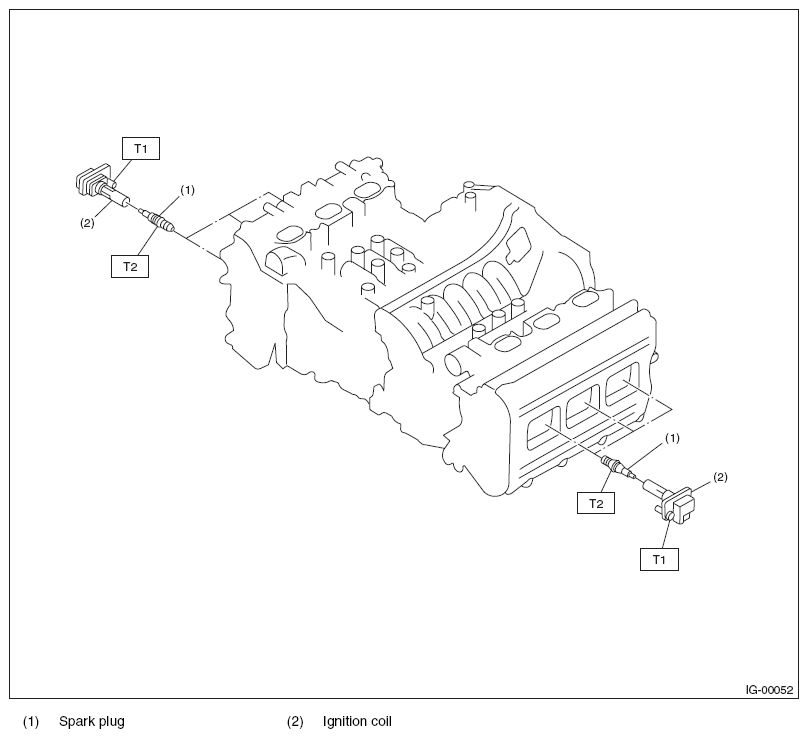

Fig 1: Spark Plug And Ignition Coil With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8

T2: 21 (2.1, 15.5)
