LH Side

Install the spark plugs using a spark plug socket.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

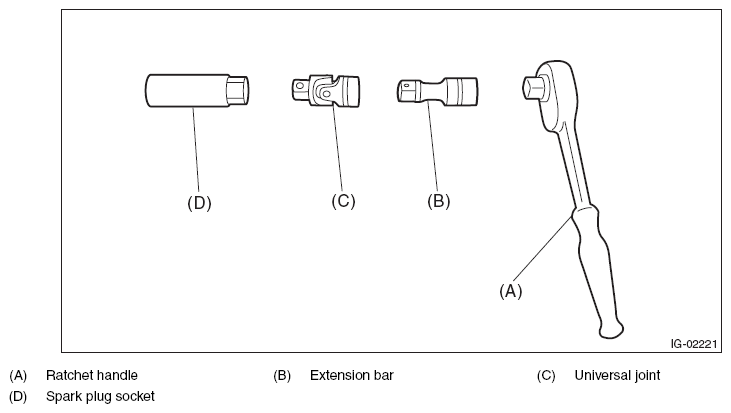

Fig 1: Installing Spark Plugs Using Spark Plug Socket (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

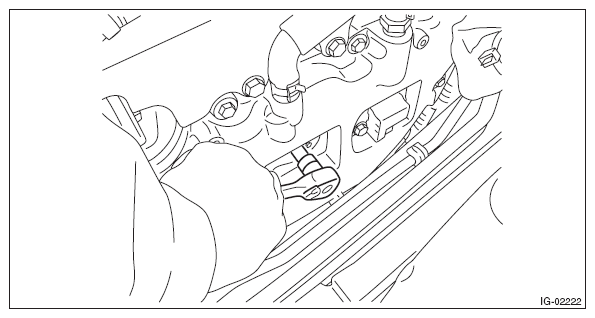

Fig 2: Installing Spark Plugs Using Spark Plug Socket (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Install the ignition coil.
NOTE: Turn the #6 ignition coil to install it.
Connect the connector (B) to the ignition coil.
Install the engine harness stay (A).
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

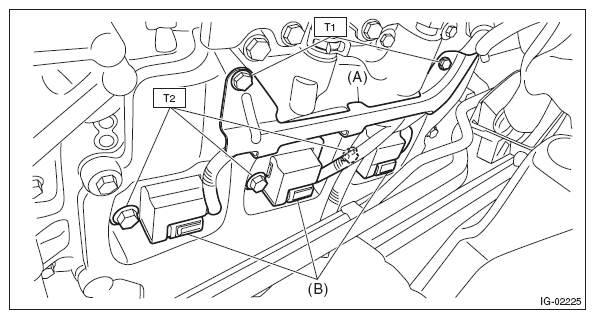

Fig 3: Installing Engine Harness Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the battery. <Ref. to INSTALLATION , Battery.>
Install the collector cover.
