Ignition Control System
CAUTION:
After servicing or replacing faulty parts, perform Clear Memory Mode Ref. to
OPERATION , Clear Memory Mode, and Inspection Mode Ref. to
PROCEDURE , Inspection Mode.
Wiring diagram:

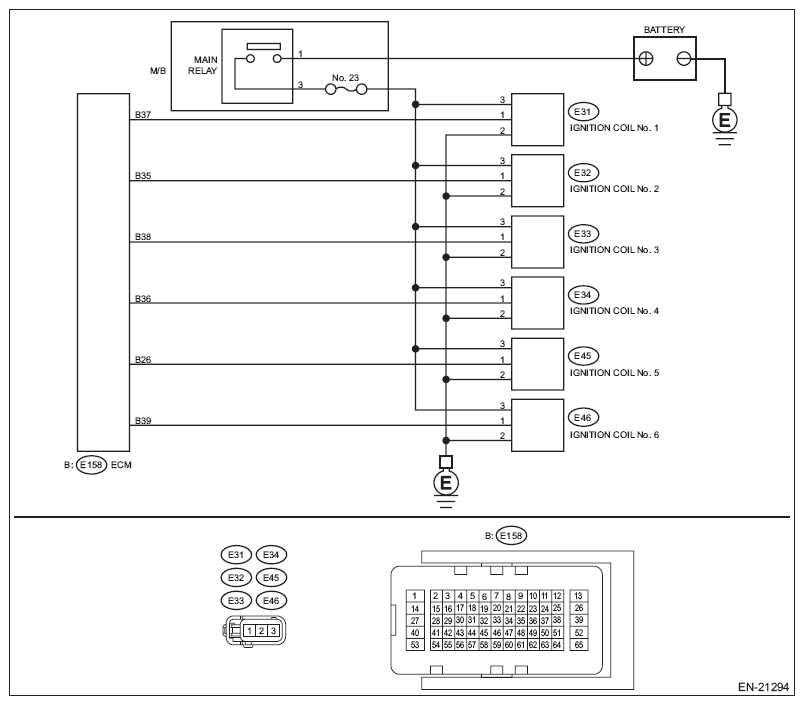

Engine Electrical System Ref. to WIRING DIAGRAM , Engine Electrical System.
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK SPARK PLUG CONDITION.
|
Is the check result OK? | Go to step 2 | Replace the spark plug. Ref. to SPARK PLUG |
2 CHECK IGNITION SYSTEM FOR SPARKS.
|
Does spark occur at each cylinder? | Check fuel pump system. Ref. to FUEL PUMP CIRCUIT , Diagnostics for Engine Starting Failure. | Go to step 3 |
3 CHECK IGNITION COIL POWER SUPPLY CIRCUIT.
|
Is the voltage 10 V or more? | Go to step 4 | Repair the harness and connector.
NOTE:
In this case, repair the following item:
|
4 CHECK HARNESS OF IGNITION COIL GROUND CIRCUIT.
|
Is the resistance less than 5 Ω? | Go to step 5 | Repair the open circuit in harness between ignition coil connector and engine grounding terminal. |
5 CHECK HARNESS BETWEEN ECM AND IGNITION COIL CONNECTOR.
|
Is the resistance less than 1 Ω? | Go to step 6 | Repair the harness and connector.
NOTE:
In this case, repair the following item:
|
| 6 CHECK HARNESS BETWEEN ECM AND IGNITION COIL CONNECTOR. Measure the resistance of harness between ECM connector and chassis ground. Connector & terminal: (B158) No. 37 - Chassis ground: (B158) No. 35 - Chassis ground: (B158) No. 38 - Chassis ground: (B158) No. 36 - Chassis ground: (B158) No. 26 - Chassis ground: (B158) No. 39 - Chassis ground: |
Is the resistance 1 MΩ or more? | Go to step 7 | Repair the ground short circuit of harness between ECM connector and ignition coil connector. |
| 7 CHECK FOR POOR CONTACT. Check for poor contact of ECM connector. |
Is there poor contact of ECM connector? | Repair the poor contact of ECM connector. | Replace the ignition coil. Ref. to IGNITION COIL |
