Waveform 1

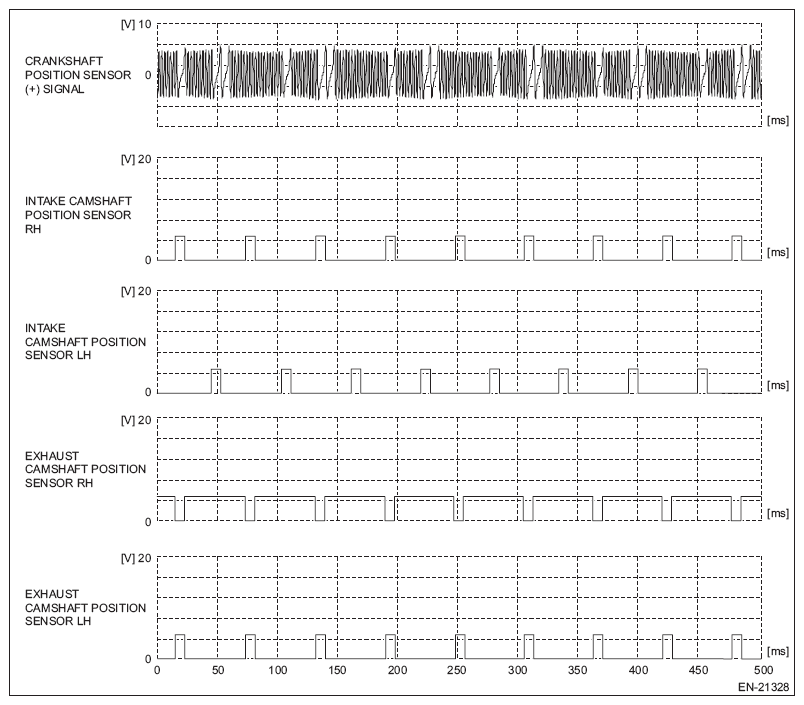

Fig 1: Waveform 1
G11586487Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Crankshaft position sensor (+) signal (E158) No. 40 - Engine ground 3 (E158) No. 63:
Intake camshaft position sensor RH (E158) No. 54 - Engine ground 3 (E158) No. 63:
Intake camshaft position sensor LH (E158) No. 41 - Engine ground 3 (E158) No. 63:
Exhaust camshaft position sensor RH (E158) No. 2 - Engine ground 3 (E158) No. 63:
Exhaust camshaft position sensor LH (E158) No. 55 - Engine ground 3 (E158) No. 63:
Measuring condition While engine idling
