Waveform 10

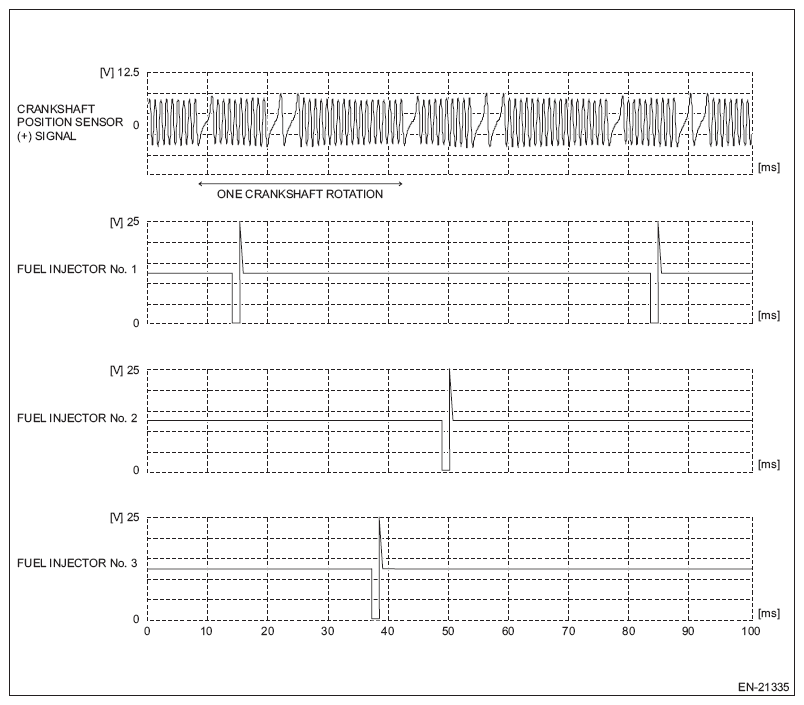

Fig 1: Waveform 10

Courtesy of SUBARU OF AMERICA, INC.

Measured terminal	Crankshaft position sensor (+) signal (E158) No. 40 (+) - Engine ground 3 (E158) No. 63:
	Fuel injector #1 (E158) No. 23 (+) - Engine ground 3 (E158) No. 63:
	Fuel injector #2 (E158) No. 8 (+) - Engine ground 3 (E158) No. 63:
	Fuel injector #3 (E158) No. 9 (+) - Engine ground 3 (E158) No. 63:
Measuring condition	While engine idling
