Waveform 13

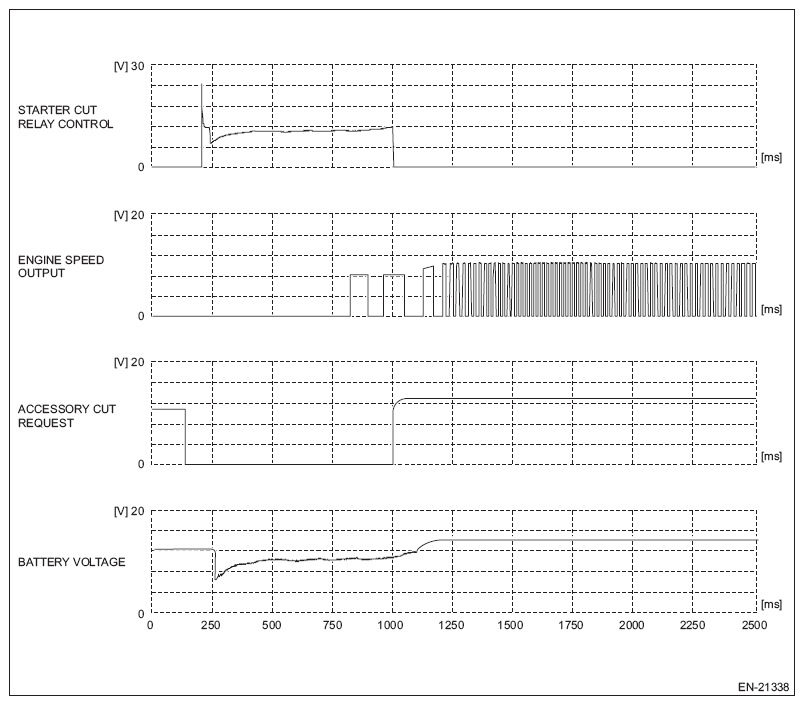

Fig 1: Waveform 13
G11586499Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Starter cut relay control (B134) No. 49 (+) - Engine ground 3 (E158) No. 63:
Engine speed output (B134) No. 10 (+) - Engine ground 3 (E158) No. 63:
Accessory cut request (B134) No. 64 (+) - Engine ground 3 (E158) No. 63:
Battery voltage (battery terminal) (+) - Engine ground 3 (E158) No. 63:
Measuring condition Engine starting status
