Waveform 14

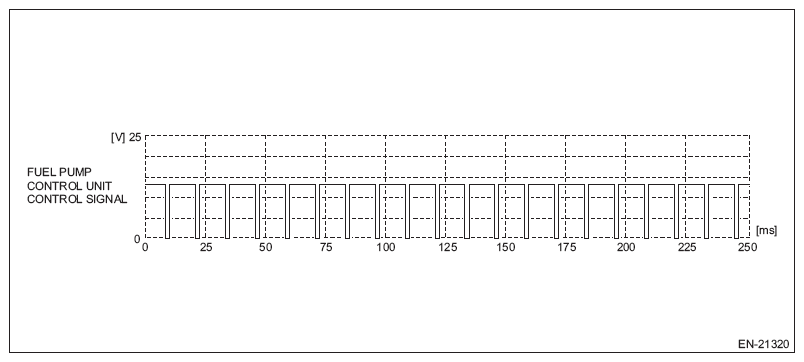

Fig 1: Waveform 14
G11586500Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Fuel pump control unit control signal (B134) No. 63 (+) - Engine ground 3 (E158) No. 63:
Measuring condition Idling status
