Waveform 15

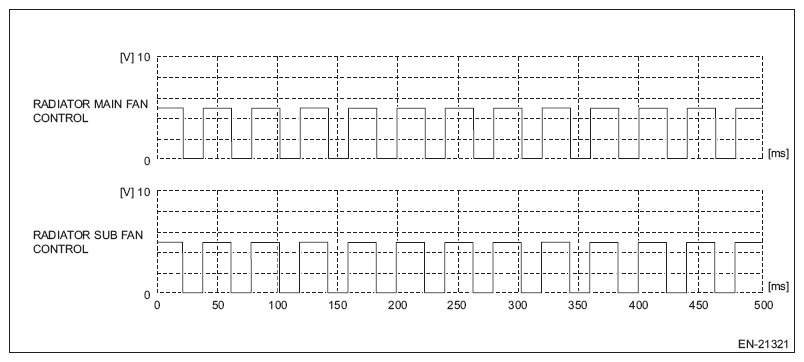

Fig 1: Waveform 15
G11586501Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Radiator main fan control (B134) No. 41 (+) - Engine ground 3 (E158) No. 63:
Radiator sub fan control (B134) No. 40 (+) - Engine ground 3 (E158) No. 63:
Measuring condition Idling status
At radiator fan operation
