Waveform 17

Fig 1: Waveform 17

Courtesy of SUBARU OF AMERICA, INC.

Measured terminal	Starter relay control (B134) No. 62 (+) - Engine ground 3 (E158) No. 63:
	Starter cut relay control (B134) No. 49 (+) - Engine ground 3 (E158) No. 63:
	Starter switch (B134) No. 46 (+) - Engine ground 3 (E158) No. 63:
	Starter switch 2 (B134) No. 58 (+) - Engine ground 3 (E158) No. 63:
	Accessory cut request (B134) No. 64 (+) - Engine ground 3 (E158) No. 63:
	Engine speed output (B134) No. 10 (+) - Engine ground 3 (E158) No. 63:
Measuring condition	When engine is started

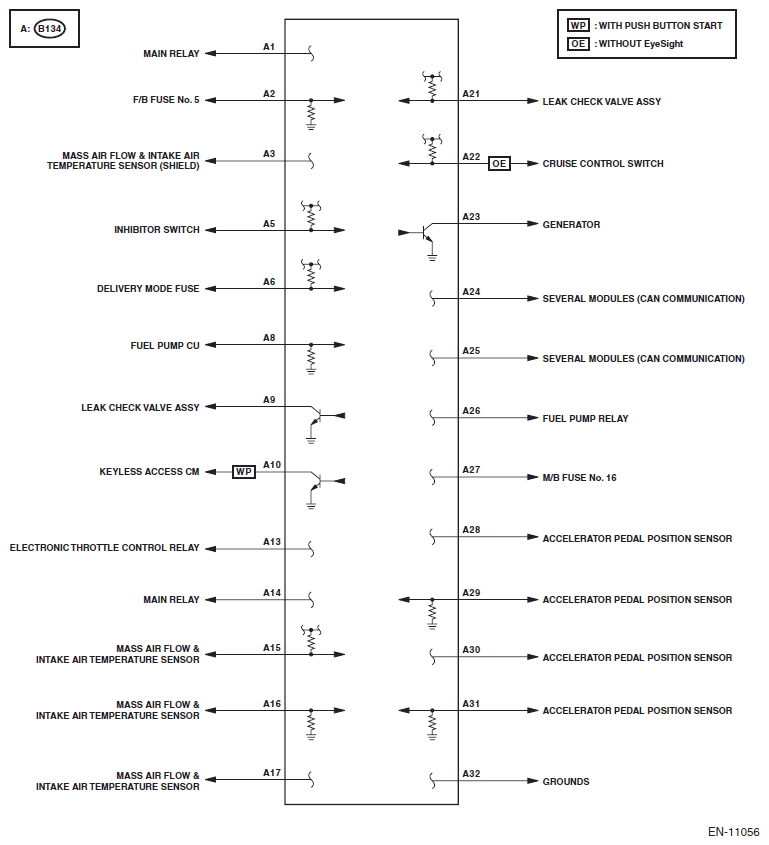

Fig 2: Engine Control Module I/O Signal Wiring Diagram (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

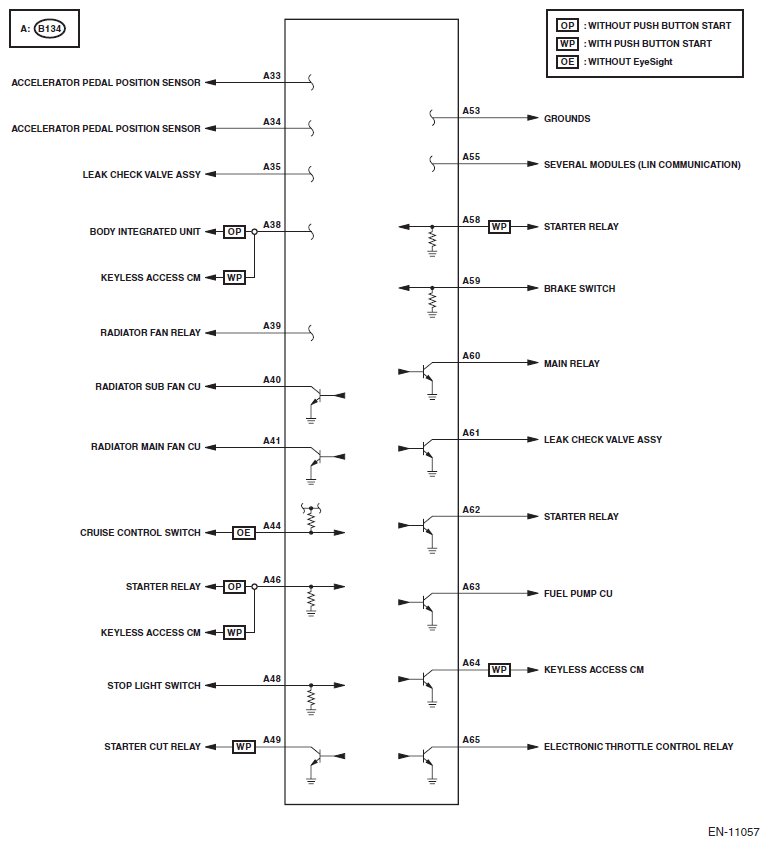

Fig 3: Engine Control Module I/O Signal Wiring Diagram (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

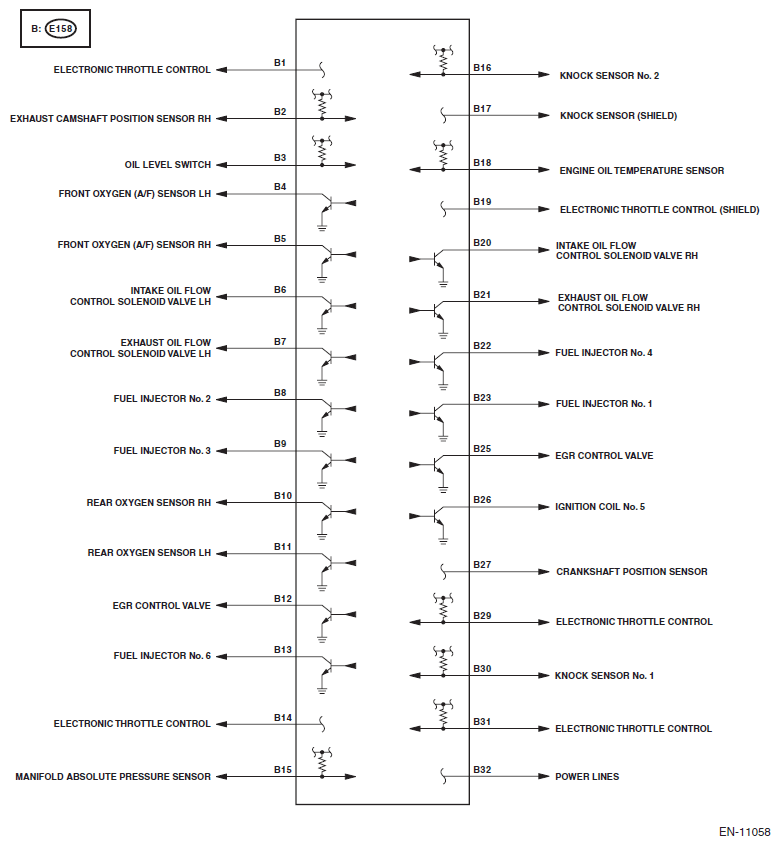

Fig 4: Engine Control Module I/O Signal Wiring Diagram (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

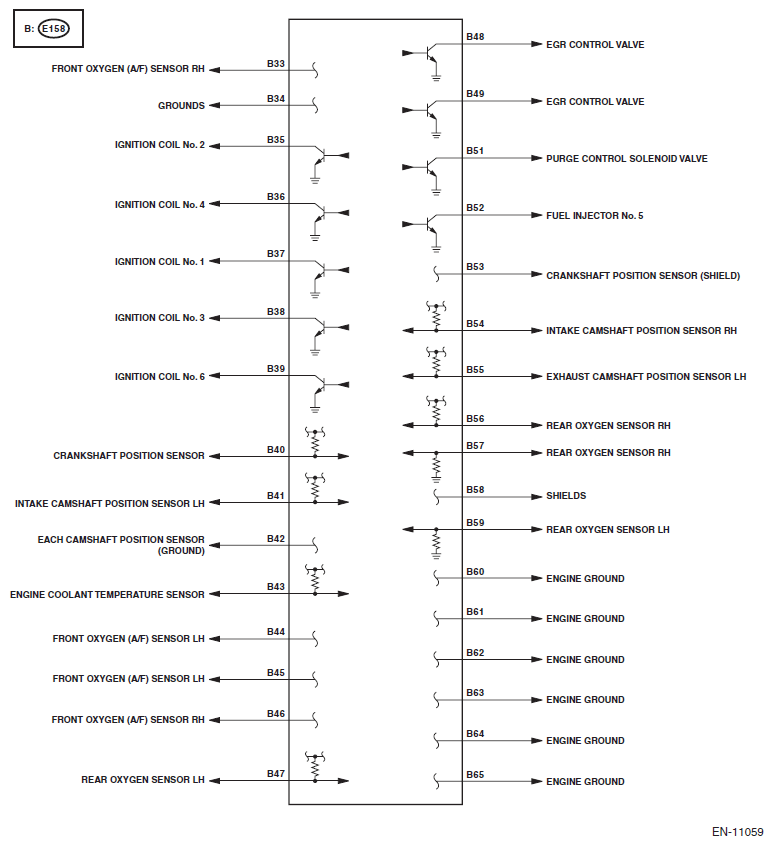

Fig 5: Engine Control Module I/O Signal Wiring Diagram (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
