Waveform 4

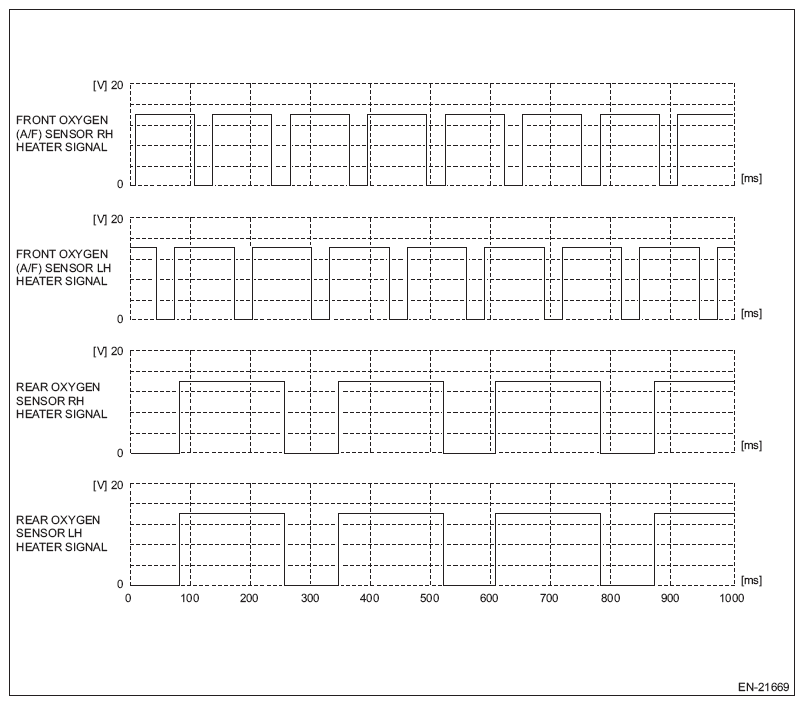

Fig 1: Waveform 4
G11586490Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Front oxygen (A/F) sensor RH heater signal (E158) No. 5 (+) - Engine ground 3 (E158) No. 63:
Front oxygen (A/F) sensor LH heater signal (E158) No. 4 (+) - Engine ground 3 (E158) No. 63:
Rear oxygen sensor RH heater signal (E158) No. 10 (+) - Engine ground 3 (E158) No. 63:
Rear oxygen sensor LH heater signal (E158) No. 11 (+) - Engine ground 3 (E158) No. 63:
Measuring condition While engine idling
