Waveform 5

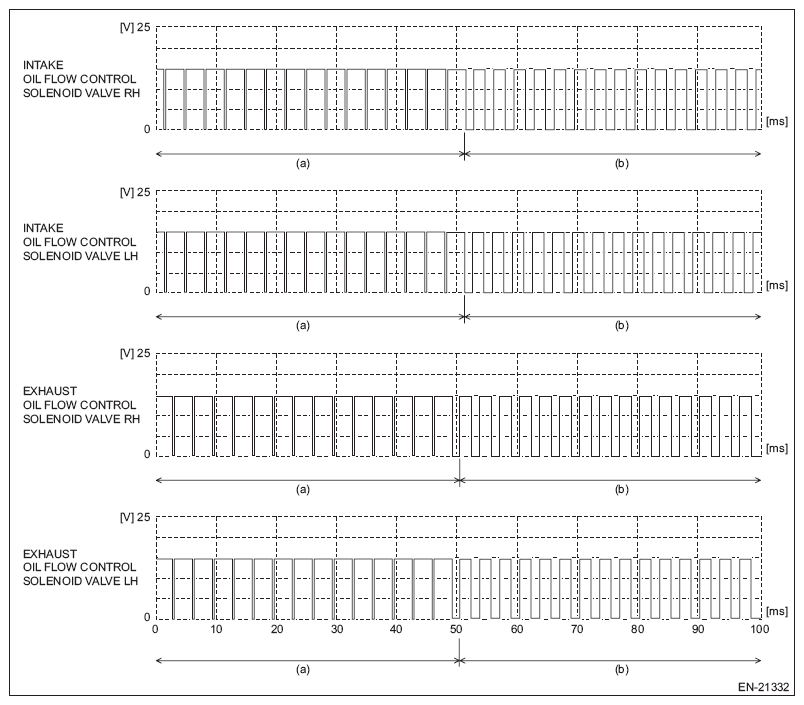

Fig 1: Waveform 5
G11586491Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Intake oil flow control solenoid valve RH (E158) No. 20 (+) - Engine ground 3 (E158) No. 63:
Intake oil flow control solenoid valve LH (E158) No. 6 (+) - Engine ground 3 (E158) No. 63:
Exhaust oil flow control solenoid valve RH (E158) No. 21 (+) - Engine ground 3 (E158) No. 63:
Exhaust oil flow control solenoid valve LH (E158) No. 7 (+) - Engine ground 3 (E158) No. 63:
Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened
