Waveform 6

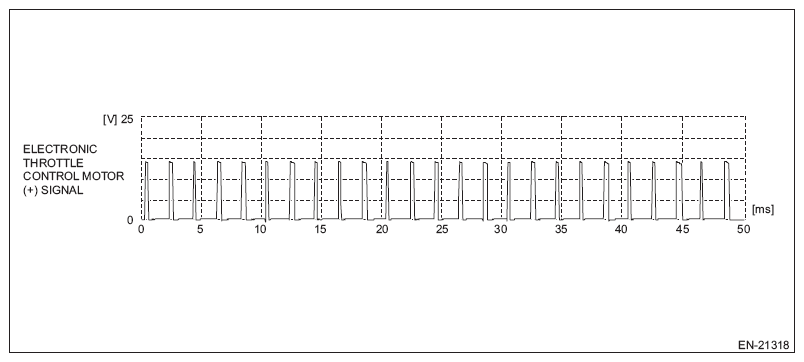

Fig 1: Waveform 6
G11586492Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Electronic throttle control motor (+) signal (E158) No. 14 (+) - Engine ground 3 (E158) No. 63:
Measuring condition While engine idling
