Waveform 7

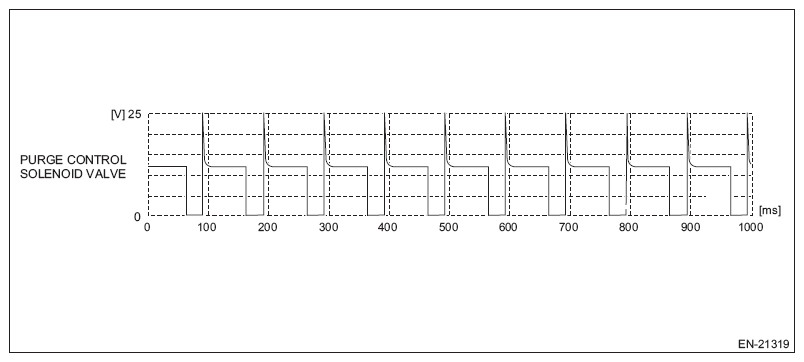

Fig 1: Waveform 7
G11586493Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Purge control solenoid valve (E158) No. 51 (+) - Engine ground 3 (E158) No. 63:
Measuring condition Purge control solenoid valve: At 2000 rpm (during evaporative purge control)
