Waveform 9

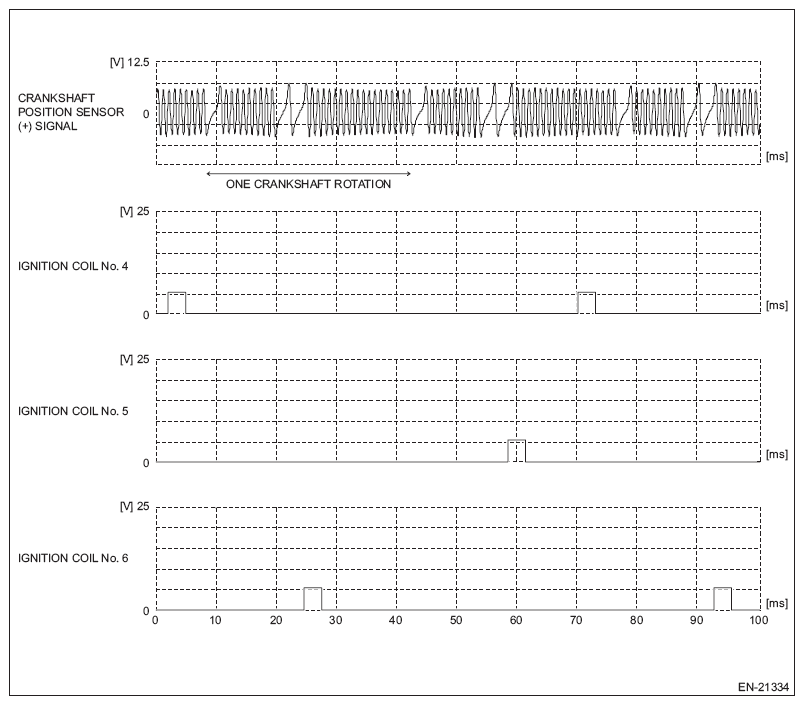

Fig 1: Waveform 9

Courtesy of SUBARU OF AMERICA, INC.

Measured terminal	Crankshaft position sensor (+) signal (E158) No. 40 (+) - Engine ground 3 (E158) No. 63:
	Ignition coil #4 (E158) No. 36 (+) - Engine ground 3 (E158) No. 63:
	Ignition coil #5 (E158) No. 26 (+) - Engine ground 3 (E158) No. 63:
	Ignition coil #6 (E158) No. 39 (+) - Engine ground 3 (E158) No. 63:
Measuring condition	While engine idling
