MT Gear Shift Cable: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Lift up the vehicle.
Remove the center exhaust pipe. <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 1: Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp cable and take out the MT gear shift cable from the clamp.

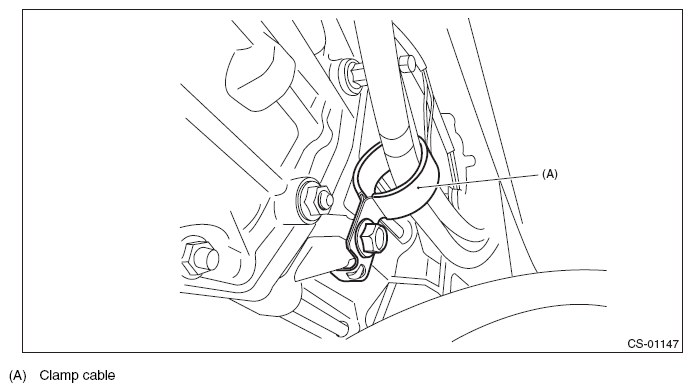

Fig 2: Clamp Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover. (OUTBACK model)

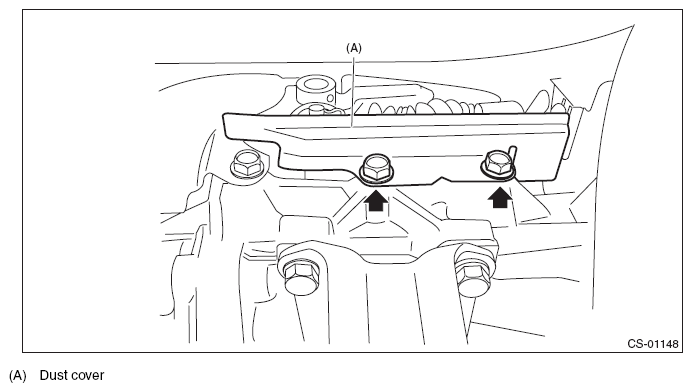

Fig 3: Locating Dust Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Apply a mark on the top end of the MT gear shift cable.
Remove the snap pin.

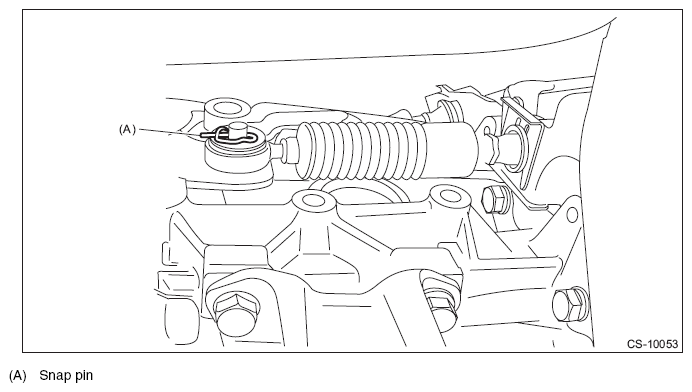

Fig 4: MT Gear Shift Cable Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift bracket together with the MT gear shift cable.

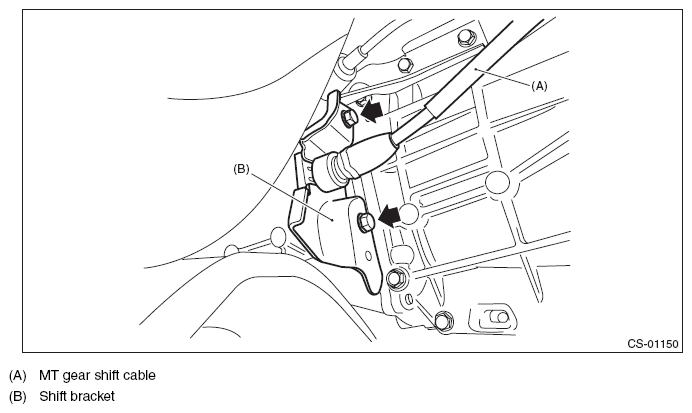

Fig 5: Locating Shift Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate cable assembly.

Fig 6: Locating Plate Cable Assembly Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.
CAUTION: Be careful not to deform the cable inner.

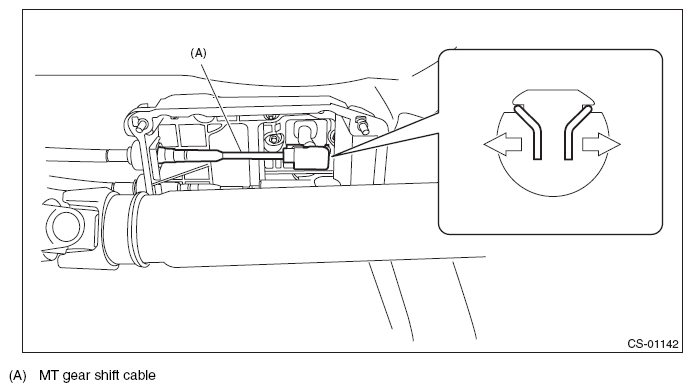

Fig 7: Removing Spring At MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp which holds the MT gear shift cable.

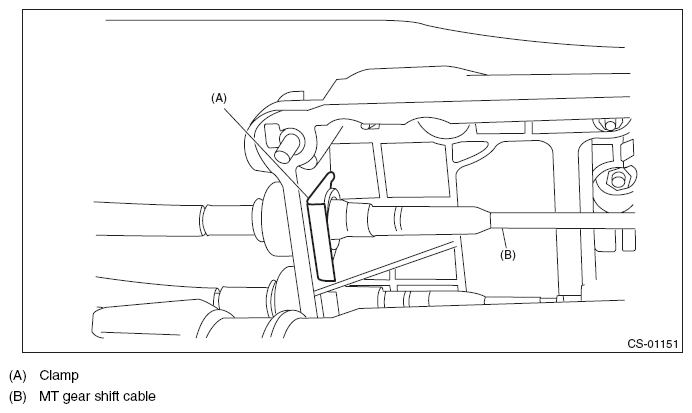

Fig 8: Clamp And MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear shift cable.
B: INSTALLATION
1. When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.

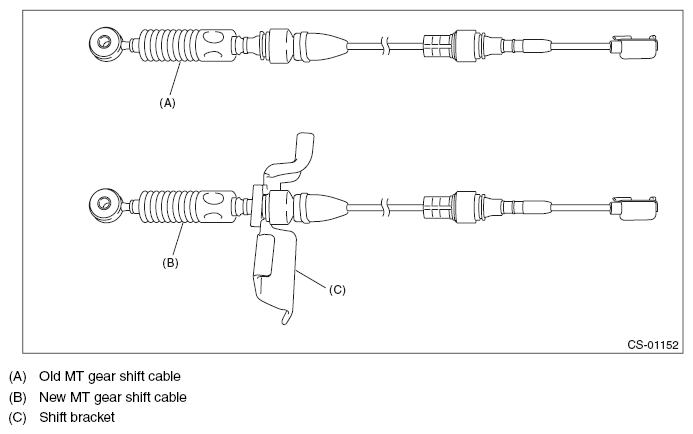

  Fig 9: MT Gear Shift Cables And Shift Bracket
  Courtesy of SUBARU OF AMERICA, INC.
2. Install the shift bracket together with the MT gear shift cable.
  CAUTION:
  - Do not bend MT gear shift cable at a sharp angle.
  - Do not twist the cable inner excessively.
  NOTE: When installing the MT gear shift cable, make sure that the mark or blue mark on the cable faces up.

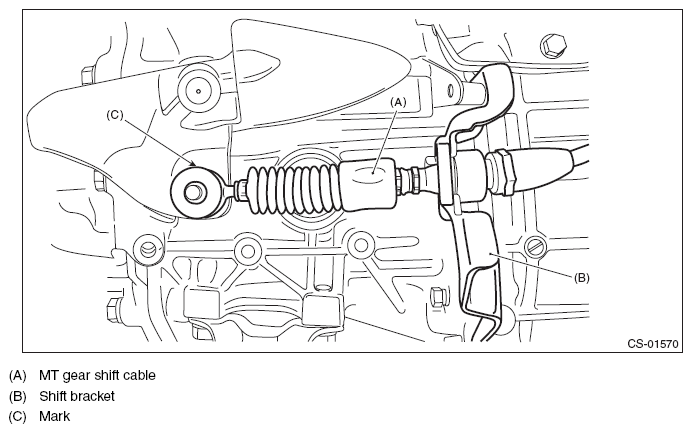

  Fig 10: MT Gear Shift Cable, Shift Bracket And Mark
  Courtesy of SUBARU OF AMERICA, INC.
3. Tighten the shift bracket with specified torque.
  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)

  Fig 11: Locating Shift Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.
4. Install the snap pin.

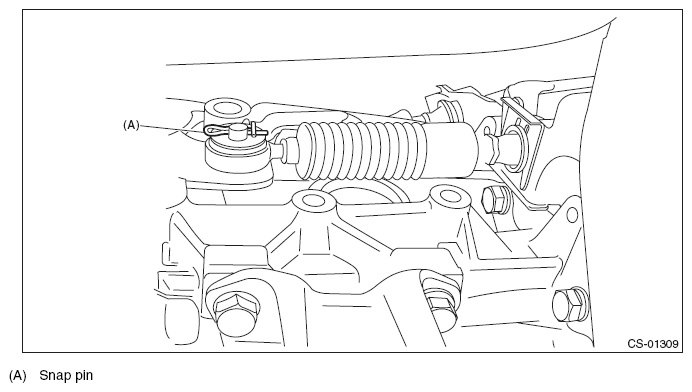

  Fig 12: Gear Shift Cable Snap Pin
  Courtesy of SUBARU OF AMERICA, INC.
5. Install the dust cover. (OUTBACK model)
  Tightening torque:

  15 N.m (1.5 kgf-m, 11.1 ft-lb)
6. Insert the MT gear shift cable into the cover cable assembly, and secure it with the clamp.

  Fig 13: Clamp And MT Gear Shift Cable
  Courtesy of SUBARU OF AMERICA, INC.
7. Connect the MT gear shift cable.
8. Install the plate cable assembly.
  Tightening torque:

  7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
9. Insert the MT gear shift cable into clamp cable, and install to the transmission.
  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)

  Fig 14: Clamp Cable
  Courtesy of SUBARU OF AMERICA, INC.
10. Install the center exhaust cover.
  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)
11. Install the center exhaust pipe. <Ref. to INSTALLATION , Center Exhaust Pipe.>
12. Lower the vehicle.
13. Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
14. Make sure the gears can be shifted accurately into each gear.
