Engine Harness

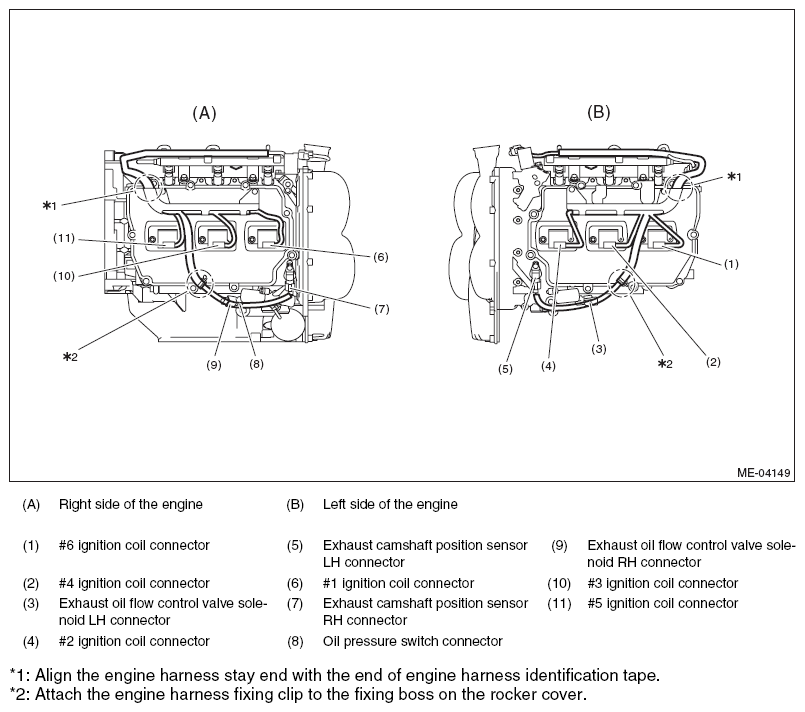

Engine harness assembly diagram 1
Fig 1: Engine Harness Assembly Diagram 1
Courtesy of SUBARU OF AMERICA, INC.

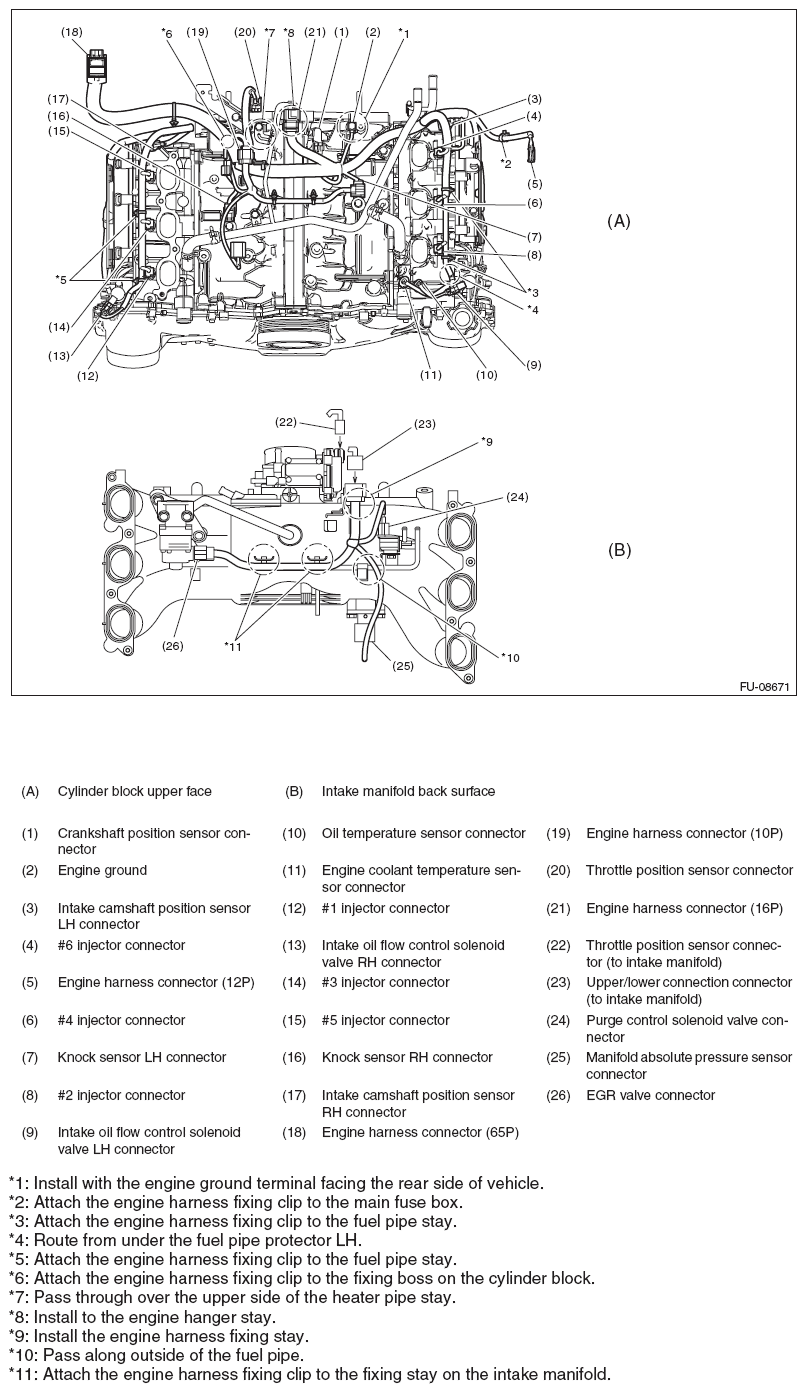

Engine harness assembly diagram 2
Fig 2: Engine Harness Assembly Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
