Keyless Entry Control Module: Removal

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the trim panel assembly - rear shelf. <Ref. to REMOVAL , Rear Shelf Trim.>
Remove the keyless entry control module.
1. Disconnect the connector.
2. Remove the bolt and then remove the keyless entry control module.

NOTE: For models with power amplifier, installation position of the keyless entry control module is different.

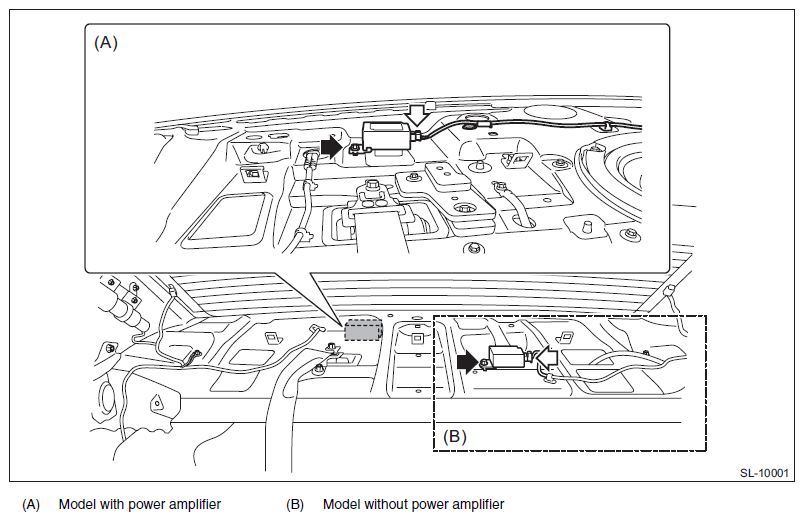

Fig 1: Disconnecting Keyless Entry Control Module Connector

Courtesy of SUBARU OF AMERICA, INC.
