Keyless Entry Control Module

Model without tire pressure monitoring system

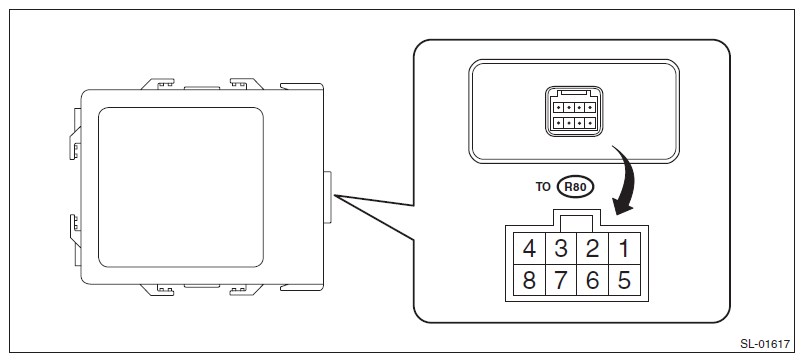

Fig 1: Keyless Entry Control Module Connector Terminal - Model Without Tire Pressure Monitoring System

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Item	Measuring condition	Standard
3 (U-ART com.)	-	Cannot be measured	-
4 (+B) ← → Chassis ground	Voltage	Always	10 - 14 V
7 (GND) ← → Chassis ground	Resistance	Always	Less than 1 Ω

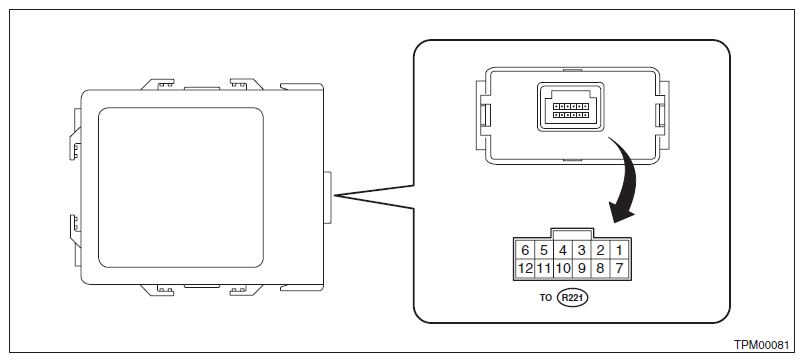

Fig 2: Keyless Entry Control Module Connector Terminal - Model With Tire Pressure Monitoring System

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Item	Measuring condition	Standard
4 (IG) ← → Chassis ground	Resistance	IG OFF → ON	0 V → 10 - 14 V
5 (GND) ← → Chassis ground	Resistance	Always	Less than 1 Ω
6 (+B) ← → Chassis ground	Voltage	Always	10 - 14 V
11 (U-ART com.)	-	Cannot be measured	-
