Engine Wiring Harness: Installation

Set the engine wiring harness to the engine, and connect the connector.
NOTE:
- If the clip is damaged, replace it with a new part.
- Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.
Fig 1: Alignment Mark On Both Engine Wiring Harness And Clip
Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 1

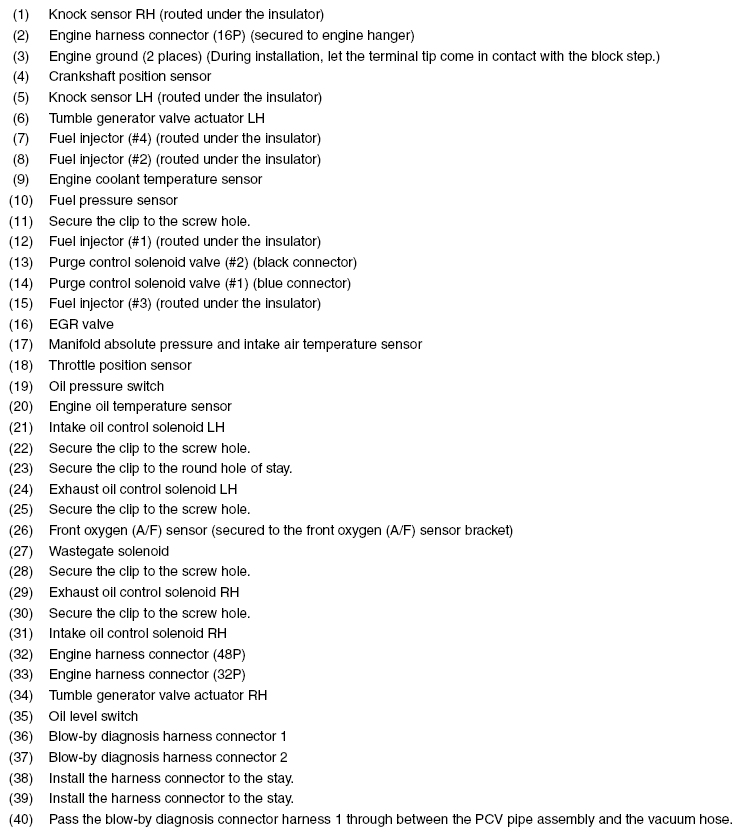

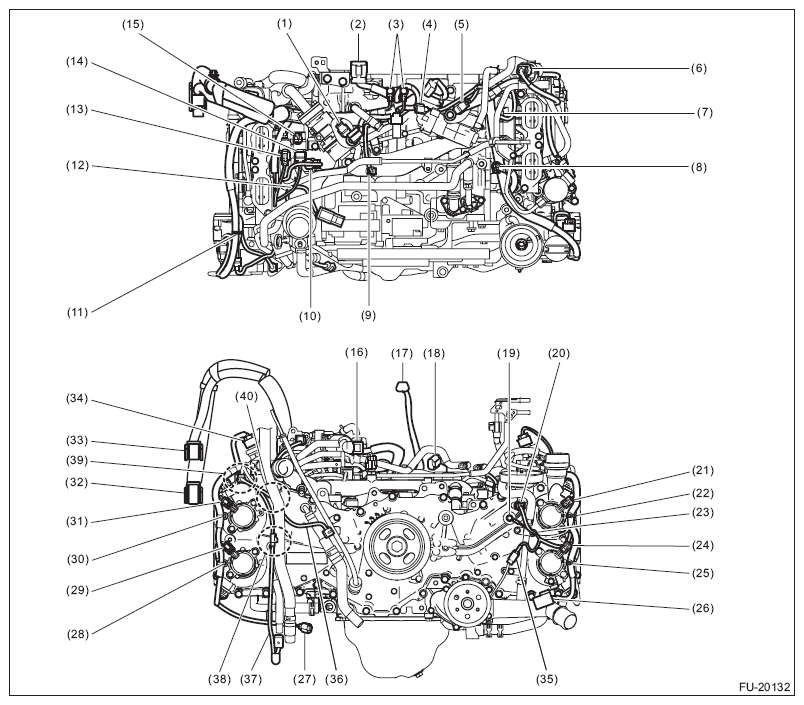

Fig 2: Engine Wiring Harness Structural Diagram 1
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Engine Wiring Harness Related Parts
Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 2

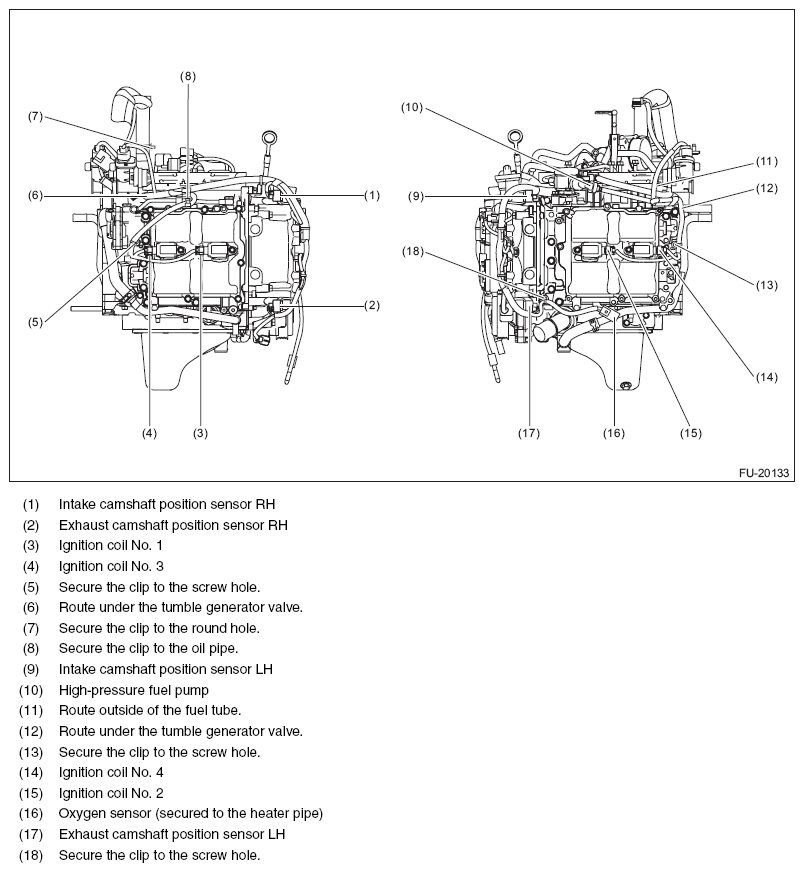

Fig 4: Engine Wiring Harness Structural Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Install the engine wiring harness.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 5: Locating Engine Wiring Harness Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the engine control module (ECM). <Ref. to INSTALLATION , Engine Control Module (ECM).>
Install the fuel insulator. <Ref. to INSTALLATION , Fuel Insulator.>
Install the intake manifold. <Ref. to INSTALLATION , Intake Manifold.>
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
