Engine Wiring Harness: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
Remove the intake manifold. <Ref. to REMOVAL , Intake Manifold.>
Remove the fuel insulator. <Ref. to REMOVAL , Fuel Insulator.>
Remove the engine control module (ECM). <Ref. to REMOVAL , Engine Control Module (ECM).>
Disconnect the connector from the engine.
- Structural diagram 1

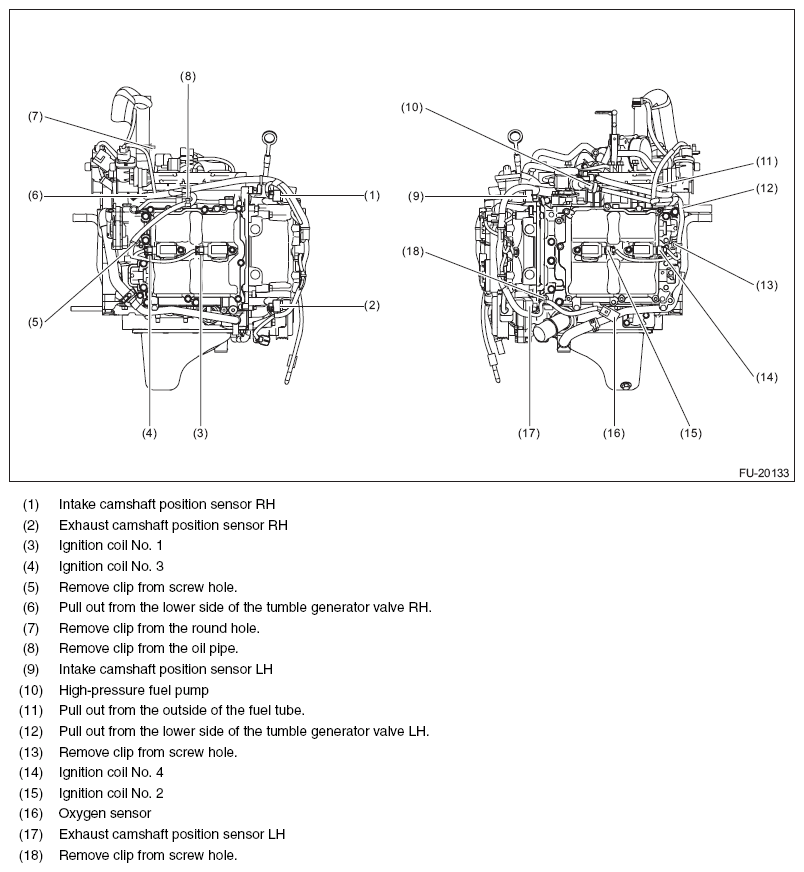

  Fig 1: Engine Wiring Harness Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.

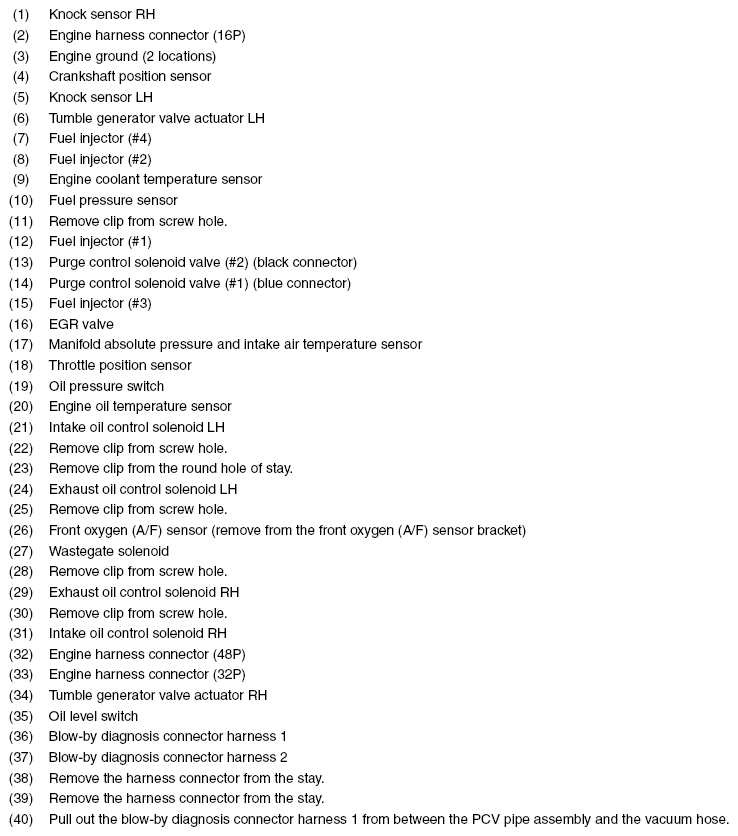

  Fig 2: Engine Wiring Harness Related Parts
  Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 2

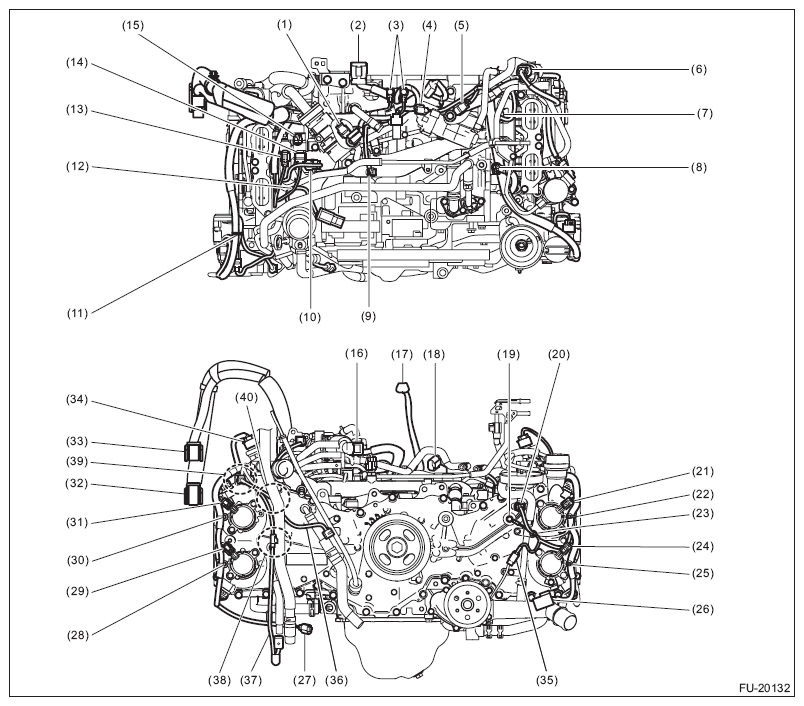

Fig 3: Engine Wiring Harness Structural Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine wiring harness.

Fig 4: Locating Engine Wiring Harness Bolts

Courtesy of SUBARU OF AMERICA, INC.
