Engine Control System (Diagnostics - Introduction) (2.0L): Electrical Component Location: Location: Sensor

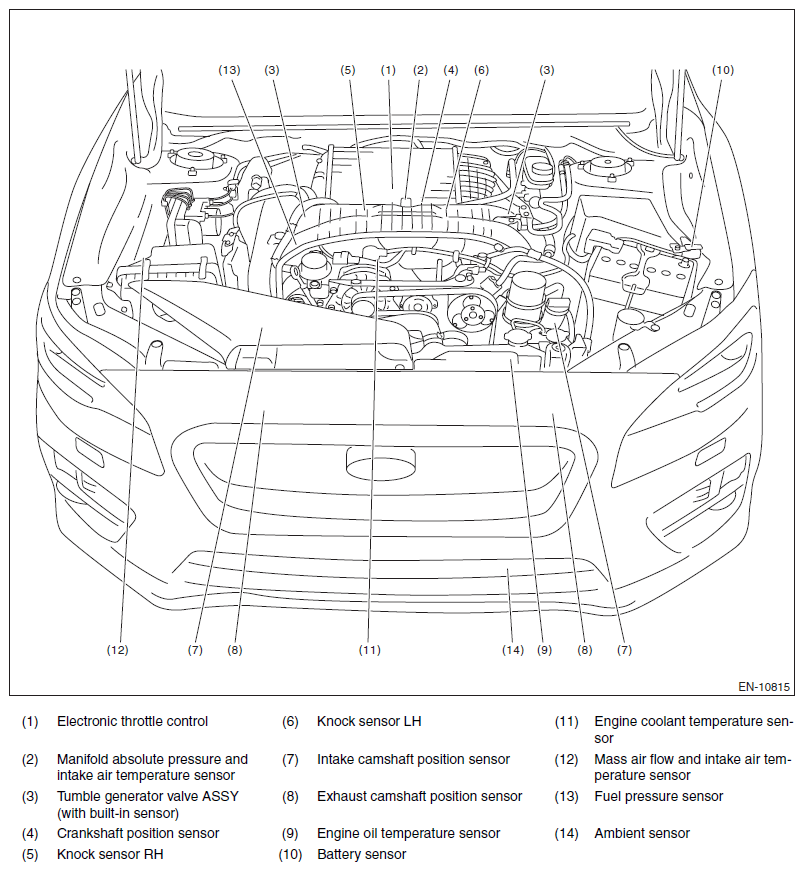

Fig 1: Sensor Component Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

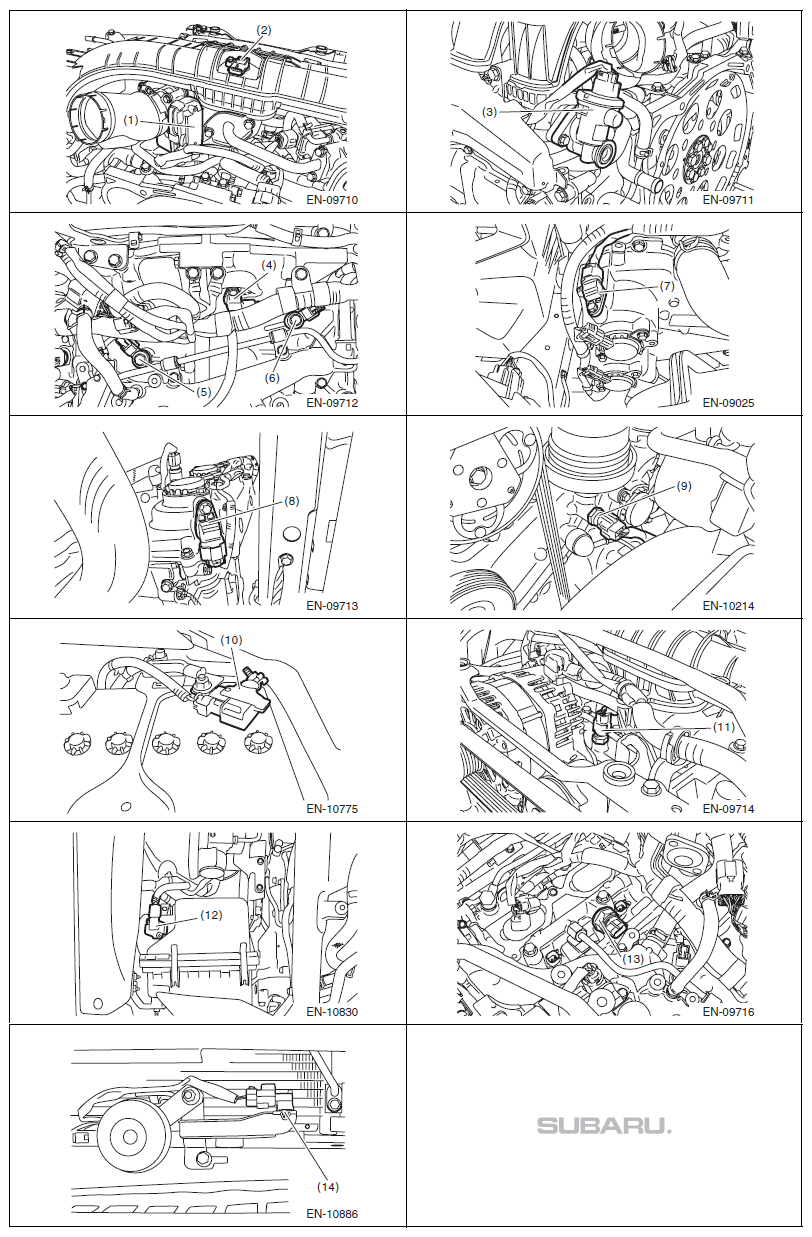

Fig 2: Sensor Component Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

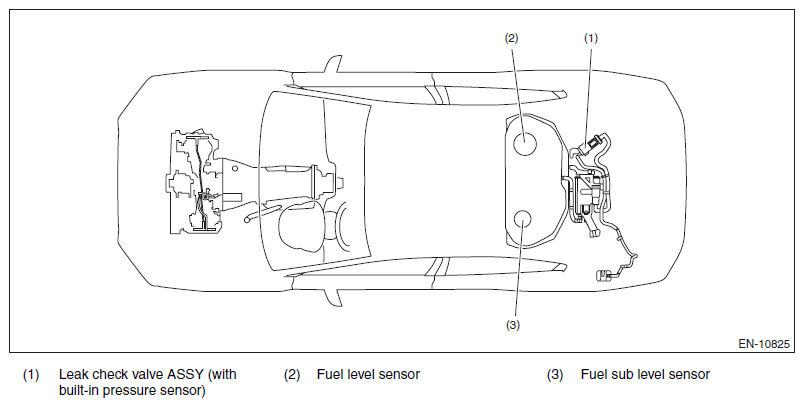

Fig 3: Sensor Component Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

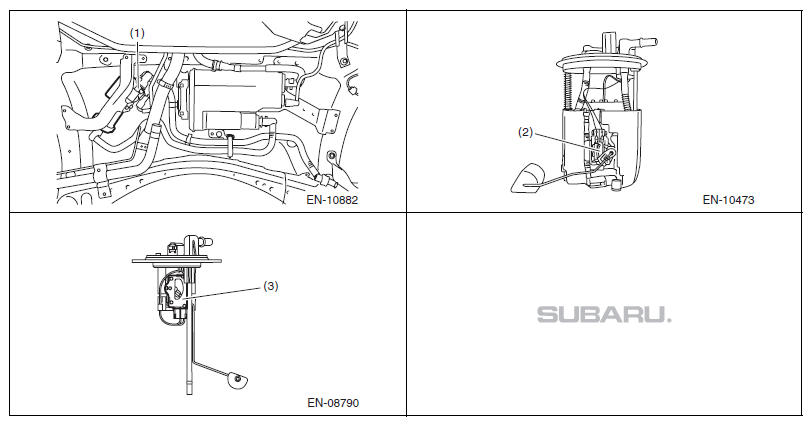

Fig 4: Sensor Component Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

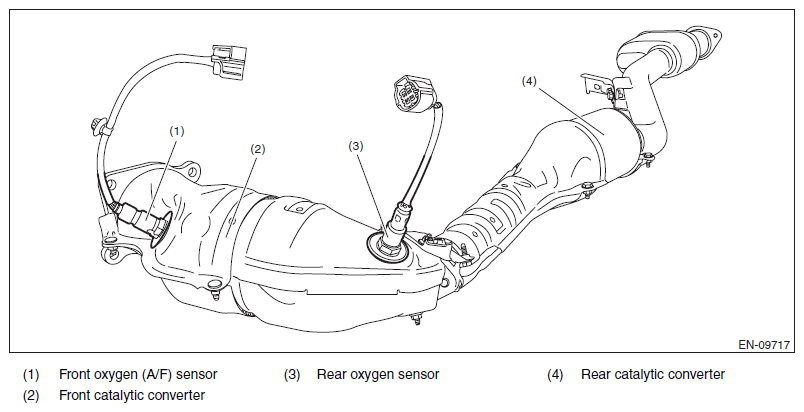

Fig 5: Sensor Component Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
