Activation Of Malfunction Indicator Light

When the ignition switch is turned to ON (engine OFF), the malfunction indicator light in the combination meter illuminates.
NOTE: If the malfunction indicator light does not illuminate, perform diagnostics of the malfunction indicator light circuit or the combination meter circuit. <Ref. to MALFUNCTION INDICATOR LIGHT DOES NOT COME ON , Malfunction Indicator Light.>

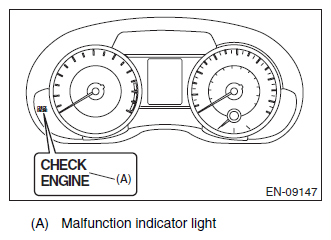

Fig 1: Malfunction Indicator Light Location
Courtesy of SUBARU OF AMERICA, INC.
After starting the engine, the malfunction indicator light goes out. If it does not go off, any of the engine and emission control system has malfunction.

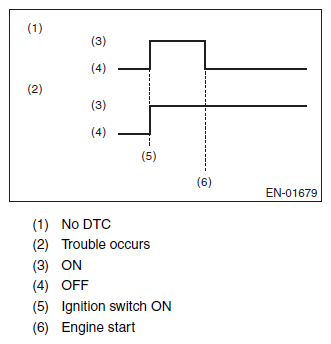

Fig 2: Malfunction Indicator Light On/Off Pattern
Courtesy of SUBARU OF AMERICA, INC.
If the diagnostic system detects a misfire which could damage the catalyst, the malfunction indicator light will blink at a cycle of 1 Hz.

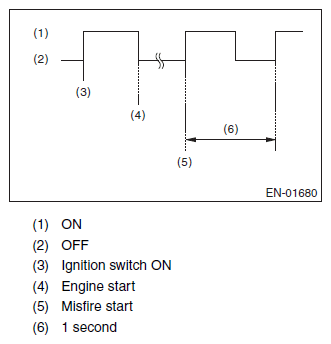

Fig 3: Malfunction Indicator Light Blinking Pattern

Courtesy of SUBARU OF AMERICA, INC.
