MT Gear Select Cable: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.

Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the air intake duct. <Ref. to REMOVAL , Air Intake Duct.>
Remove the intercooler and the intercooler stay. <Ref. to REMOVAL , Intercooler.>
Disconnect the engine harness connector.

Fig 1: Disconnecting Engine Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the transmission radio ground cord terminal.

Fig 2: Disconnecting Transmission Radio Ground Cord Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper. <Ref. to PITCHING STOPPER , REMOVAL, Transmission Mounting System.>
Lift up the vehicle.
Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 3: Removing Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the propeller shaft. <Ref. to REMOVAL , Propeller Shaft.>
Remove the cable clamp.

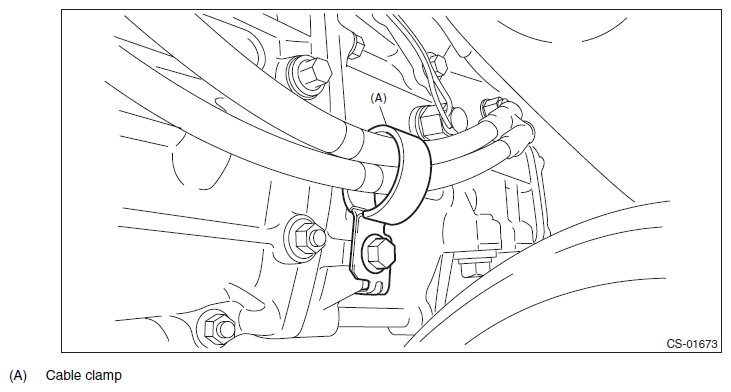

Fig 4: Removing Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission jack under the transmission.
Remove the mounting bolt of front crossmember and rear crossmember, and lower the transmission approx. 100 mm (4 in).

Fig 5: Removing Mounting Bolt Of Front Crossmember And Rear Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Insert a spanner between the selector lever COMPL and the MT gear select cable, and remove the MT gear select cable by raising the handle.
NOTE:
- Use a spanner with 11 to 13 in size.
- The thickness of the spanner must not exceed 6 mm (0.2 in).

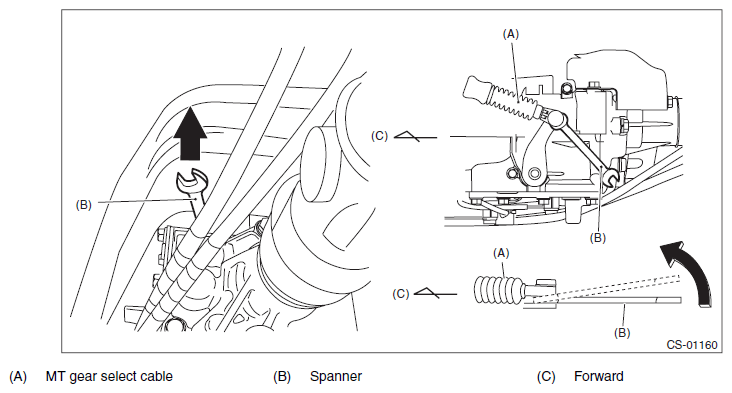

Fig 6: Inserting Spanner Between Selector Lever COMPL And MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the MT gear select cable and select bracket as a single unit.

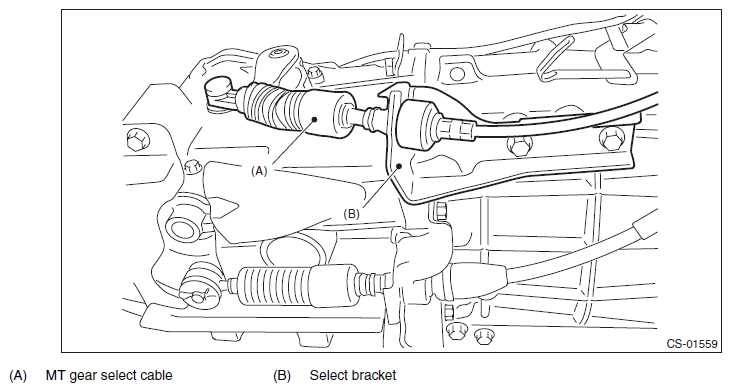

Fig 7: Removing MT Gear Select Cable And Select Bracket Single Unit
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

Fig 8: Removing Cable Cover Plate
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear select cable.
CAUTION: Be careful not to deform the cable inner.

NOTE: Push the MT gear select cable in the direction of arrow, and remove it.

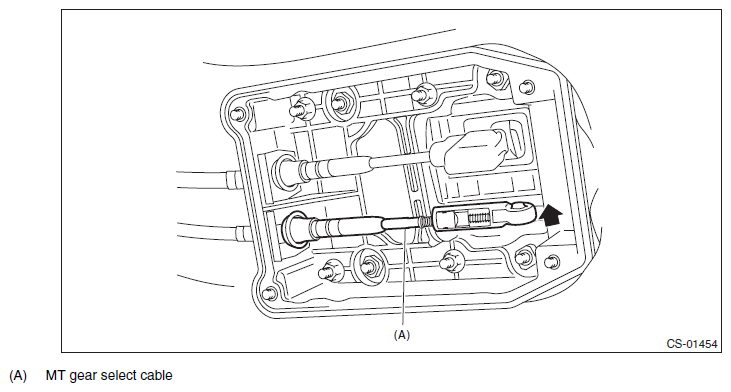

Fig 9: Pushing MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp.

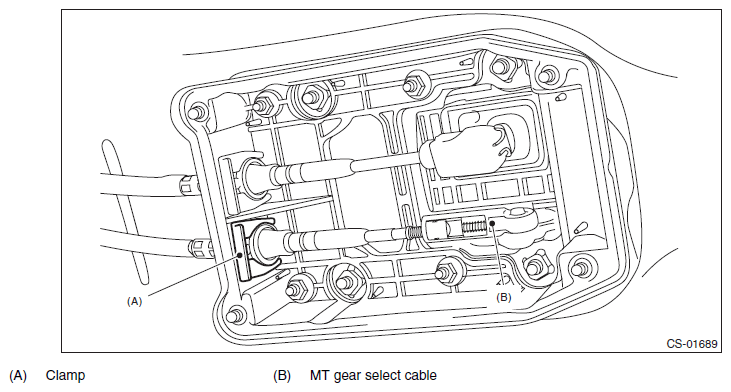

Fig 10: Removing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear select cable.
CAUTION: Do not bend the MT gear select cable sharply.

Fig 11: Pulling Out MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
