MT Gear Shift Cable: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Lift up the vehicle.
Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 1: Removing Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable clamp.

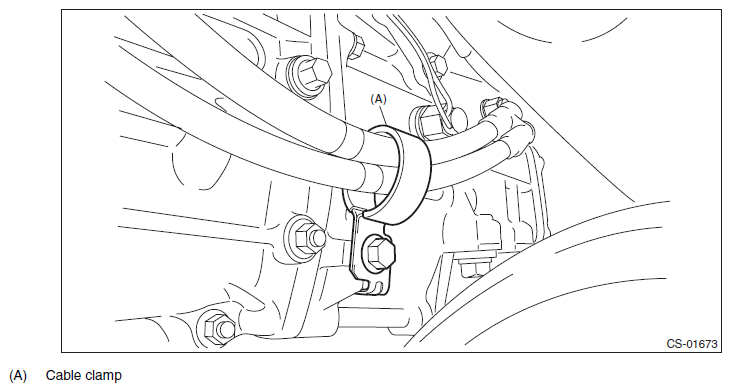

Fig 2: Removing Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover.

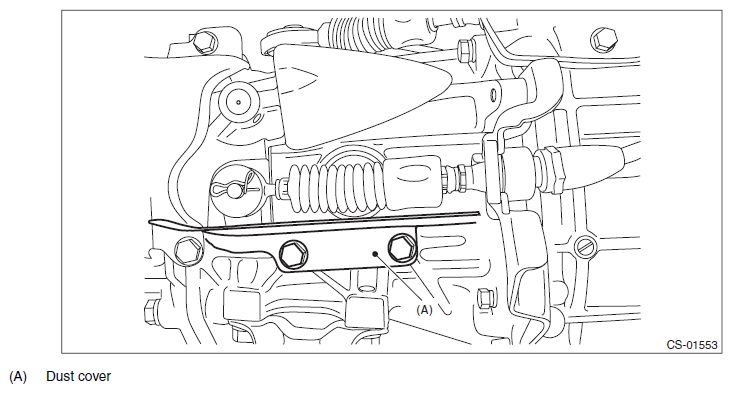

Fig 3: Removing Dust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer.

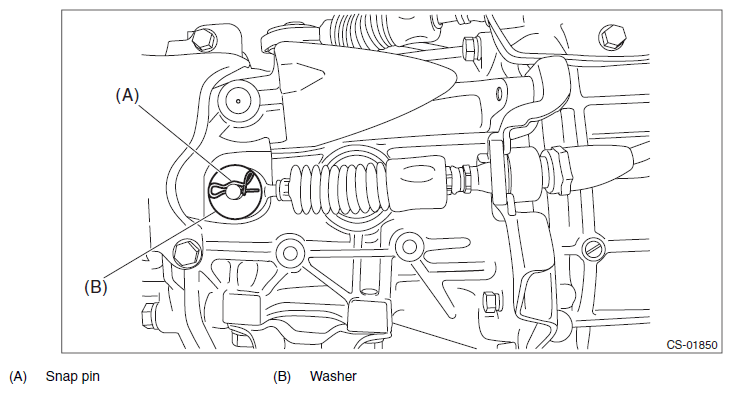

Fig 4: Removing Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts holding the shift bracket.

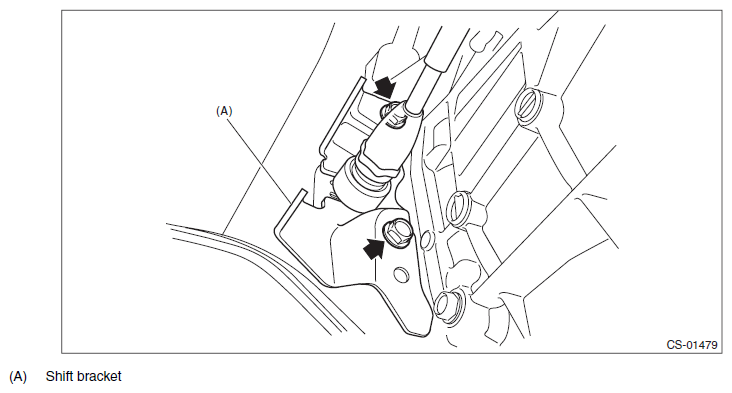

Fig 5: Removing Bolts Holding Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift bracket together with the MT gear shift cable.

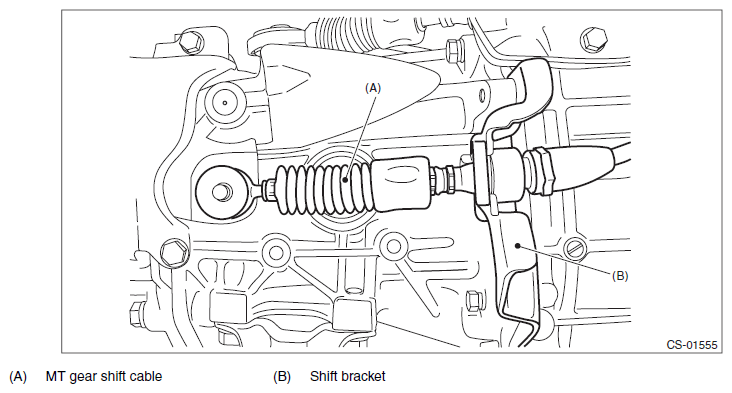

Fig 6: Removing Shift Bracket With MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

Fig 7: Removing Cable Cover Plate
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear shift cable.
CAUTION: Be careful not to deform the cable inner.

NOTE: Pull out down the MT gear shift cable to spread the spring.

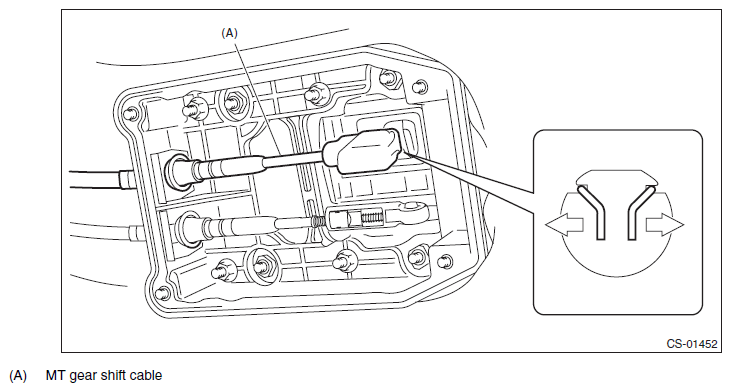

Fig 8: Pulling Out Down MT Gear Shift Cable To Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp.

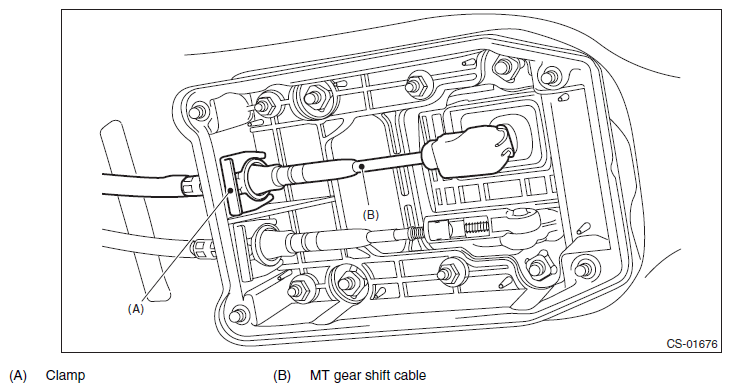

Fig 9: Removing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear shift cable.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
Fig 10: Pulling Out MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
