STI Model

Press in a new pilot bearing to the position where it is flush with the flywheel surface or up to 0.4 mm (0.016 in) deeper than that.
CAUTION: Do not press the bearing inner ring.

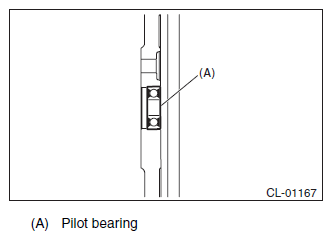

Fig 1: Pilot Bearing Location
Courtesy of SUBARU OF AMERICA, INC.
Install the flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

Fig 2: Tightening Flywheel Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel mounting bolts to the specified torque.
NOTE: Tighten the flywheel attachment bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.

Tightening torque:

75 N.m (7.6 kgf-m, 55.3 ft-lb)

Fig 3: Flywheel Attachment Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and clutch cover. <Ref. to INSTALLATION , Clutch Disc and Cover.>
Install the transmission assembly. <Ref. to INSTALLATION , Manual Transmission Assembly.>
