Clutch Assembly

• STI model

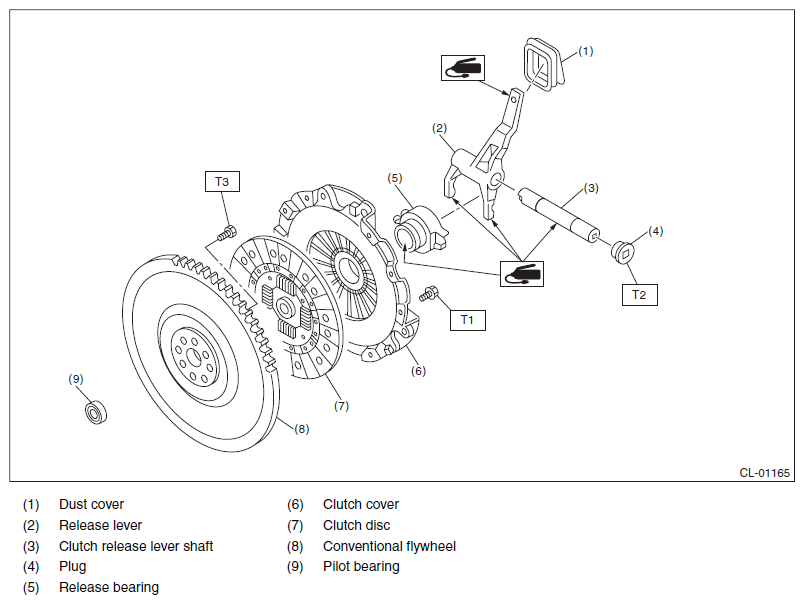

Fig 1: Exploded View Of Clutch Assembly With Torque Specification (STI Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 48 (4.9, 35.4)

T3: 75 (7.6, 55.3)

• Except for STI model

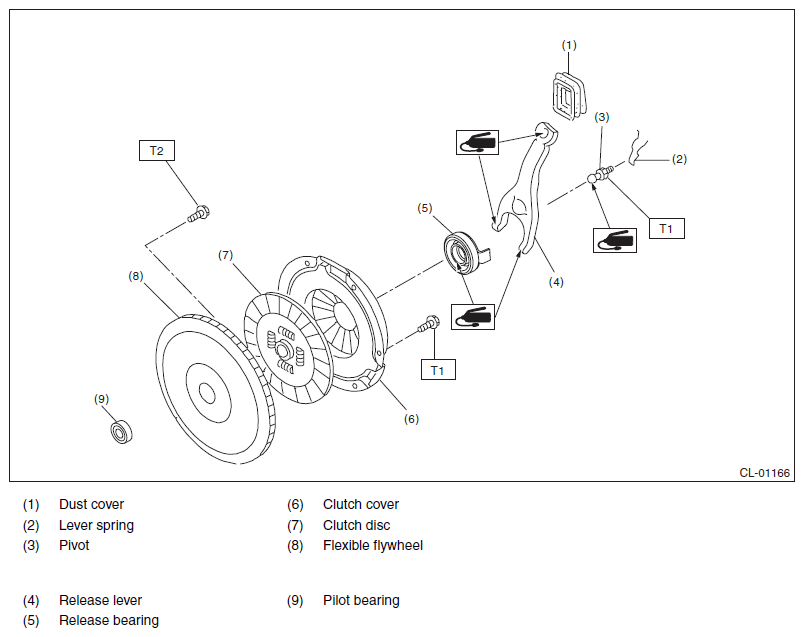

Fig 2: Exploded View Of Clutch Assembly With Torque Specification (Except For STI Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: <Ref. to  EXCEPT FOR STI MODEL  , INSTALLATION, Flywheel.>
