Master Cylinder: Assembly

1. Apply a coat of grease to the contact surfaces of the push rod and piston before installation.

   Grease:

   SILICONE GREASE G-40M or equivalent

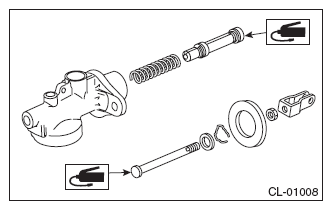

   Fig 1: Grease Applying Area On Push Rod And Piston Contact Surfaces

   Courtesy of SUBARU OF AMERICA, INC.
2. Assemble in the reverse order of disassembly.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)
