Except For STI Model

  1. Remove the transmission assembly from the vehicle. <Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Remove the dust cover.

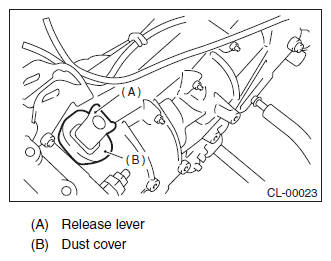

    Fig 1: Release Lever And Dust Cover
    G11578859Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the attachment point of lever spring by inserting a screwdriver through the clutch housing release lever hole. Then remove the release lever together with the release bearing.

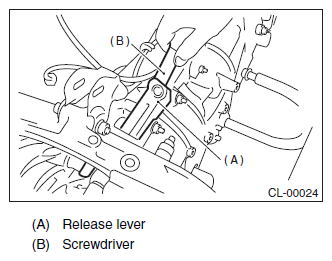

Fig 2: Removing Attachment Point Of Lever Spring Using Screwdriver Through Clutch Housing Release Lever Hole
G11578860Courtesy of SUBARU OF AMERICA, INC.
