MT Gear Shift Lever: Disassembly

NOTE: Disassemble procedures are only for STI model.

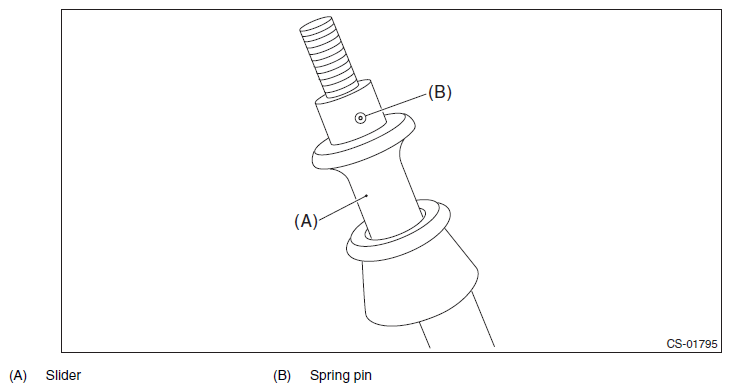

Remove the spring pin from the slider.

Fig 1: Removing Spring Pin From Slider
Courtesy of SUBARU OF AMERICA, INC.

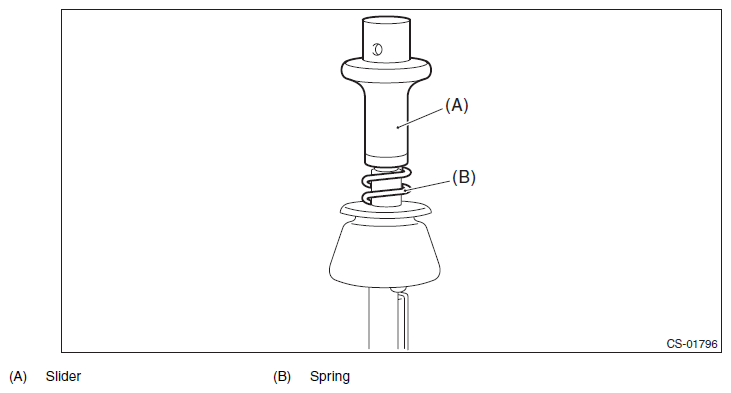

Remove the slider and spring.

Fig 2: Removing Slider And Spring
Courtesy of SUBARU OF AMERICA, INC.
Cut off the band clip.

Fig 3: Cutting Off Band Clip
Courtesy of SUBARU OF AMERICA, INC.

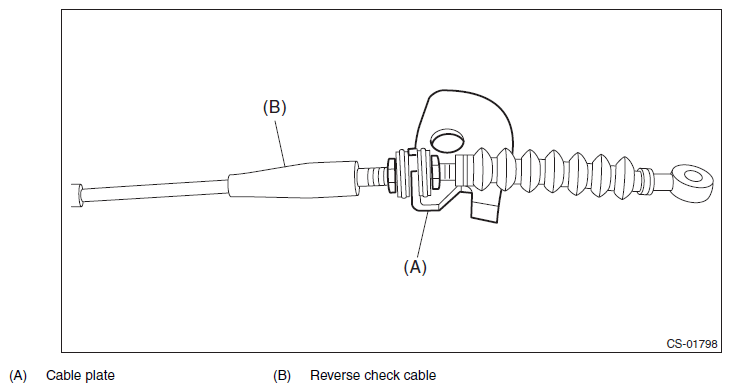

Remove the reverse check cable from the cable plate.

Fig 4: Removing Reverse Check Cable From Cable Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse check cable.

Fig 5: Removing Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.

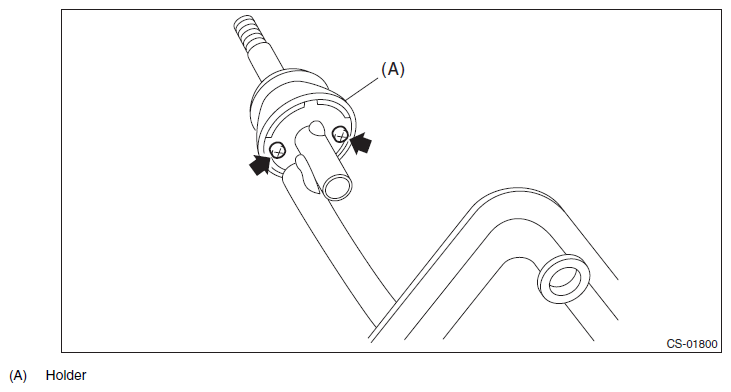

Remove the holder and spring.

Fig 6: Removing Holder And Spring
Courtesy of SUBARU OF AMERICA, INC.

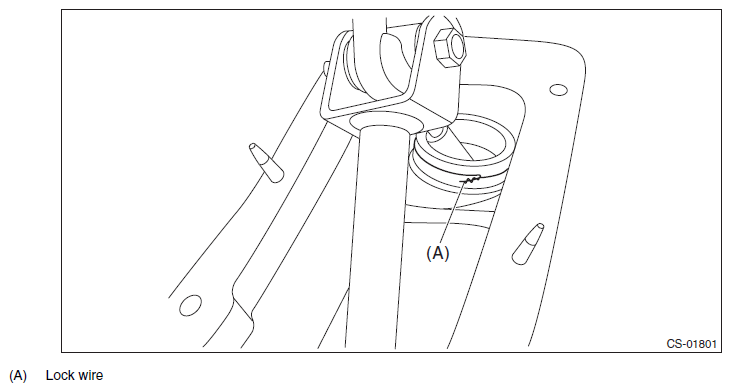

Disassemble the lock wire.
NOTE: Do not reuse the lock wire.

Fig 7: Disassembling Lock Wire
Courtesy of SUBARU OF AMERICA, INC.

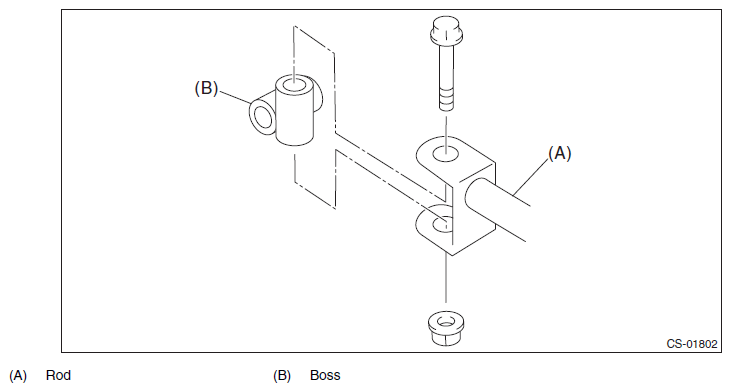

Remove the boss from the rod.

Fig 8: Removing Boss From Rod
Courtesy of SUBARU OF AMERICA, INC.

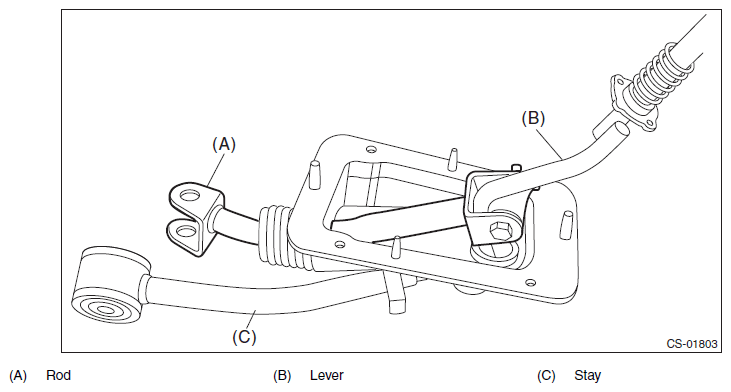

Remove the rod from lever.

Fig 9: Removing Rod From Lever
Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.

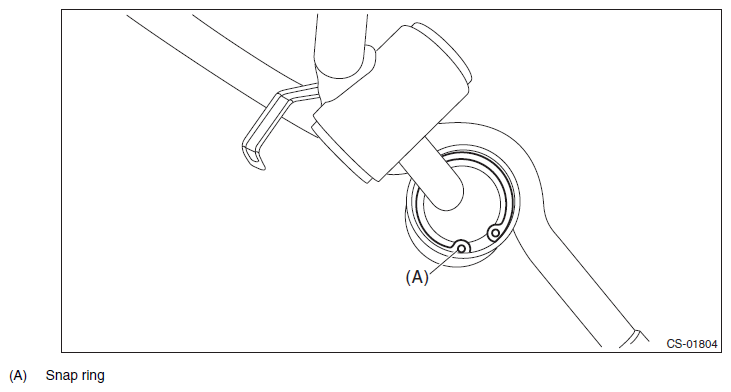

Remove the snap ring.

Fig 10: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Separate the gear shift lever and the stay.

Fig 11: Separating Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.

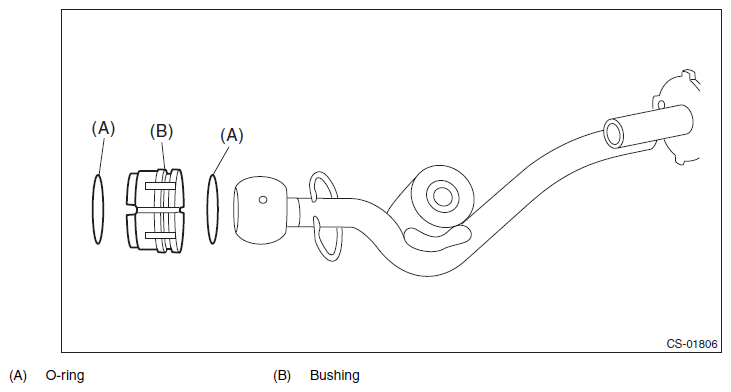

Remove the O-ring and bushing.

Fig 12: Removing O-Ring And Bushing
Courtesy of SUBARU OF AMERICA, INC.

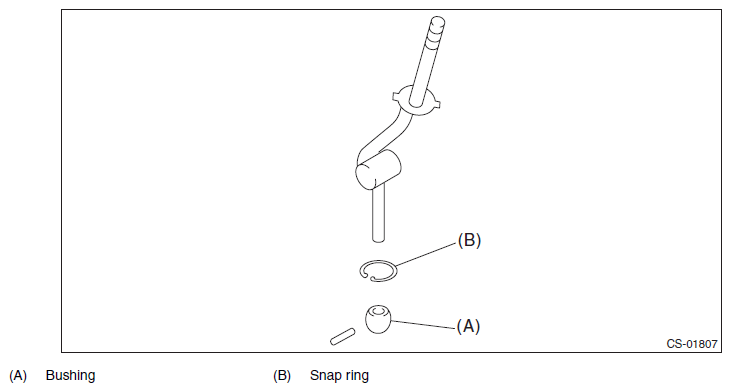

Remove the spring pin, and then remove the bushing and snap ring.

Fig 13: Removing Bushing And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

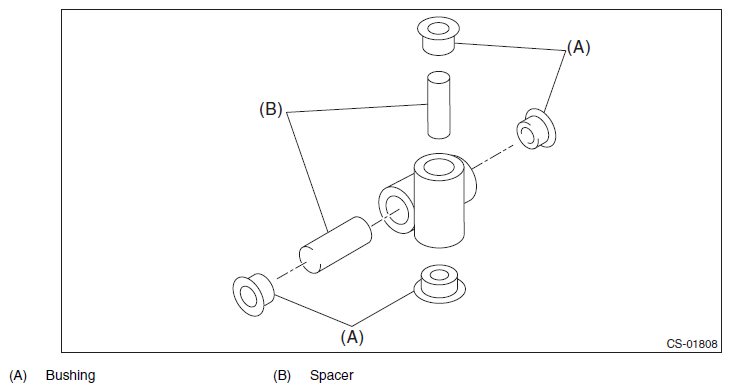

Remove the bushing and spacer from the boss.

Fig 14: Removing Bushing And Spacer From Boss
Courtesy of SUBARU OF AMERICA, INC.

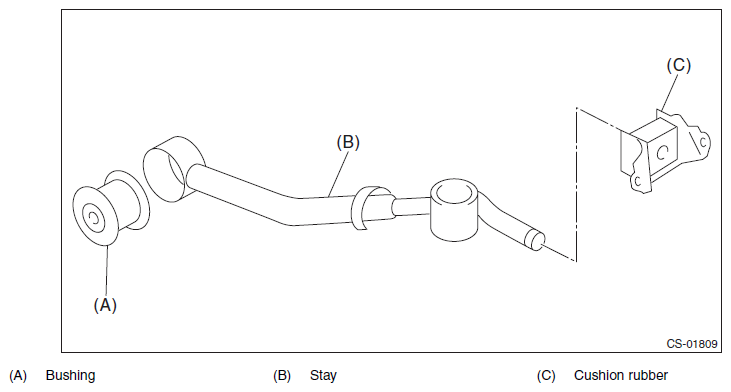

Remove the bushing and cushion rubber from the stay.

Fig 15: Removing Bushing And Cushion Rubber From Stay
