Select Cable: Installation

Position the select cable as shown in the figure, and install it to the plate assembly.
CAUTION:
- If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not forcibly turn the cable (wire side) to align the direction correctly.
Tightening torque:

T: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

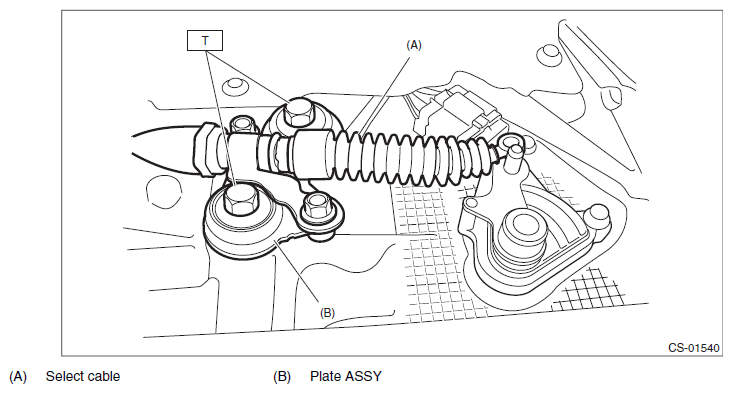

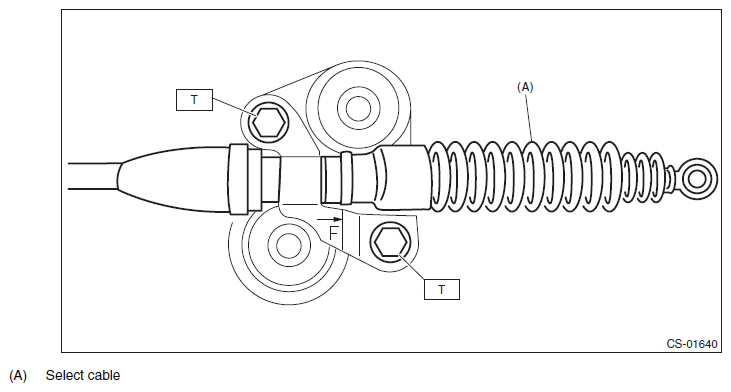

Fig 1: Positioning Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 2: Installing Select Cable To Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

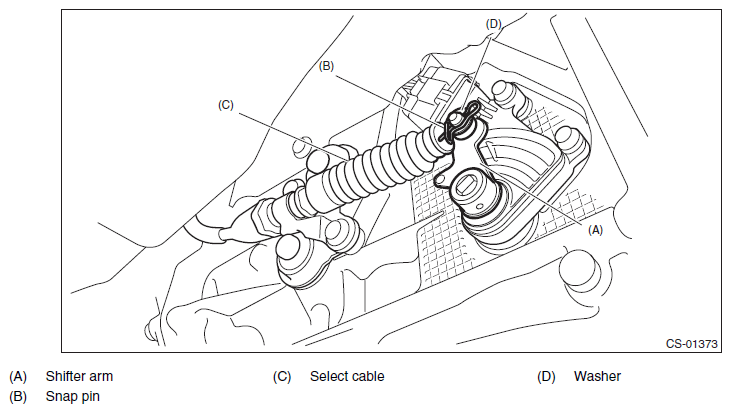

Fig 3: Installing Washer And Snap Pin To Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

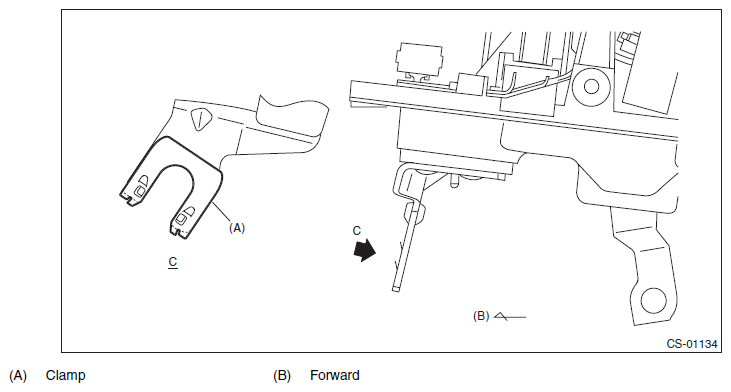

Fig 4: Installing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 5: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. <Ref. to ADJUSTMENT , Select Cable.>
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the center exhaust pipe (rear). <Ref. to INSTALLATION , Center Exhaust Pipe.>
Lower the vehicle.
Connect the battery ground terminal. <Ref. to BATTERY , NOTE, Note.>
