Select Cable: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Lift up the vehicle.
Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 1: Removing Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer from the shifter arm.

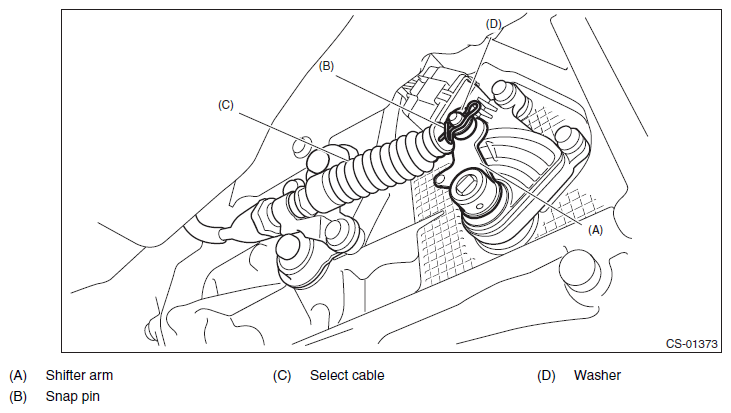

Fig 2: Removing Snap Pin And Washer From Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly.

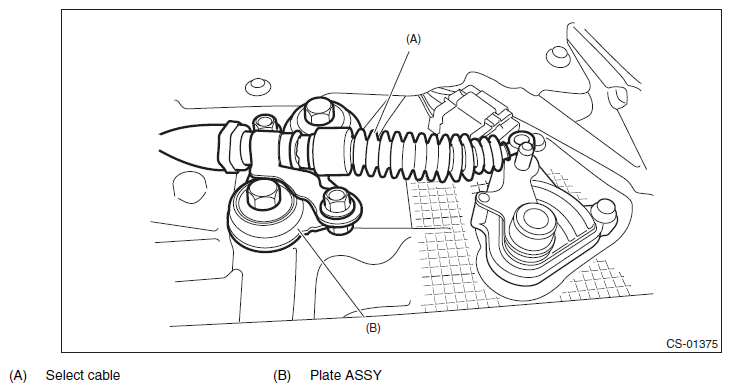

Fig 3: Removing Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from arm COMPL.

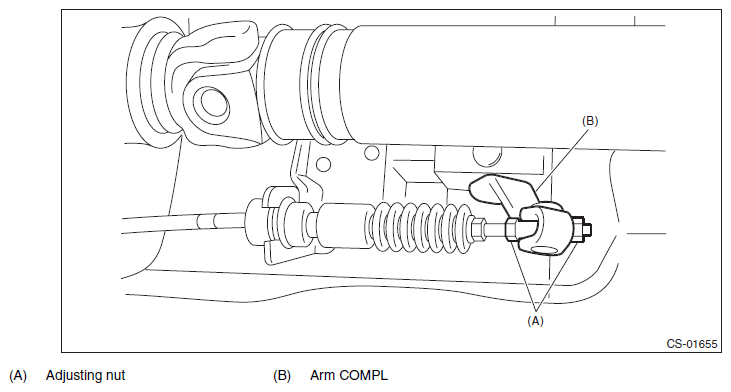

Fig 4: Disconnecting Cable From Arm COMPL
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp and remove the cable.

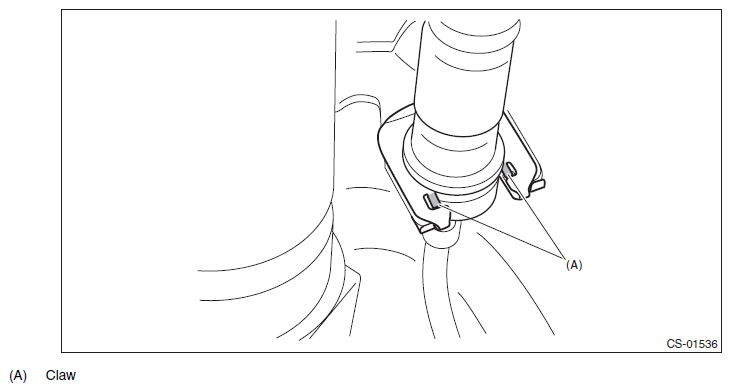

Fig 5: Raising Claw Of Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
