Select Lever: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Lift up the vehicle.
Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 1: Removing Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from the arm COMPL.

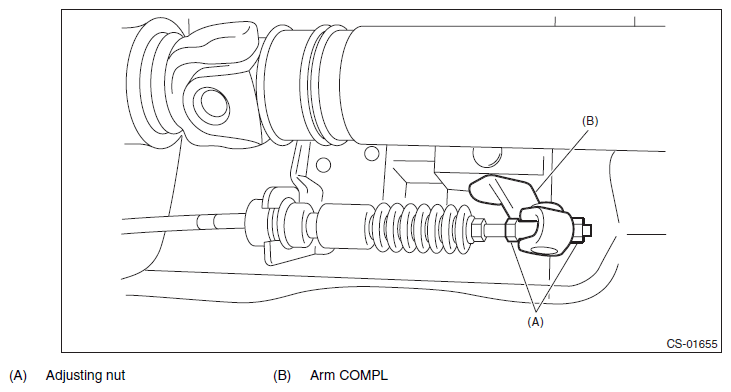

Fig 2: Disconnecting Cable From Arm COMPL
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp and remove the cable.

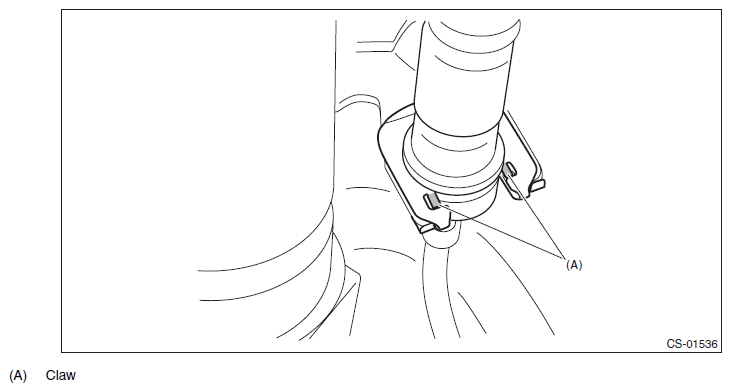

Fig 3: Raising Claw Of Clamp
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Shift the select lever to "N" range.
Lower the boot assembly vertically toward the lever.

Fig 4: Locating Shift Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp grip pin.

Fig 5: Removing Clamp Grip Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip assembly.

Fig 6: Removing Grip Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the console box assembly. <Ref. to REMOVAL , Console Box.>
Remove the cover - shift lever. <Ref. to REMOVAL , Console Box.>
Remove the panel center LWR LH and RH. <Ref. to REMOVAL , Console Box.>
Disconnect the connector, and remove the indicator assembly.

Fig 7: Removing Connector And Indicator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clips.

Fig 8: Locating Harness Clips
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector.

Fig 9: Disconnecting Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the select lever assembly.

Fig 10: Removing Select Lever Assembly
Courtesy of SUBARU OF AMERICA, INC.
