Fuel Level Sensor: Inspection

  1. Check that the fuel level sensor has no damage.
  2. Measure the fuel level sensor float position.
    NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

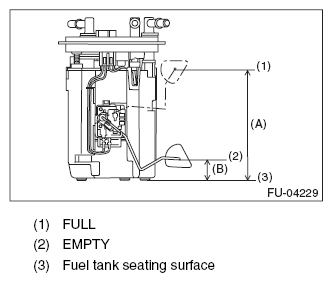

    Fig 1: Fuel Level Sensor Float Positions
    G11571689Courtesy of SUBARU OF AMERICA, INC.
    Float position Standard
    FULL to Fuel tank seating surface (A) 135±4 mm (5.315±0.157 in)
    EMPTY to Fuel tank seating surface (B) 23.7±4 mm (0.933±0.157 in)
  3. Measure the resistance between fuel level sensor terminals.

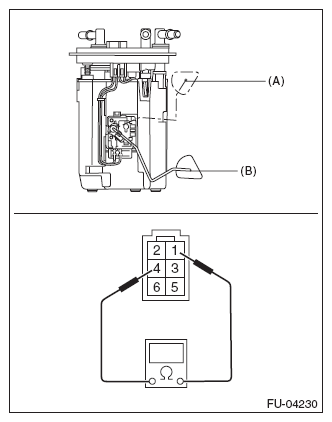

    Fig 2: Measuring Resistance Between Fuel Level Sensor Terminals
    G08538912Courtesy of SUBARU OF AMERICA, INC.
    Float position Terminal No. Standard
    FULL (A) 1 and 4 8.7±1.0 Ω
    EMPTY (B) 139.1±2.0 Ω
