Air Intake System

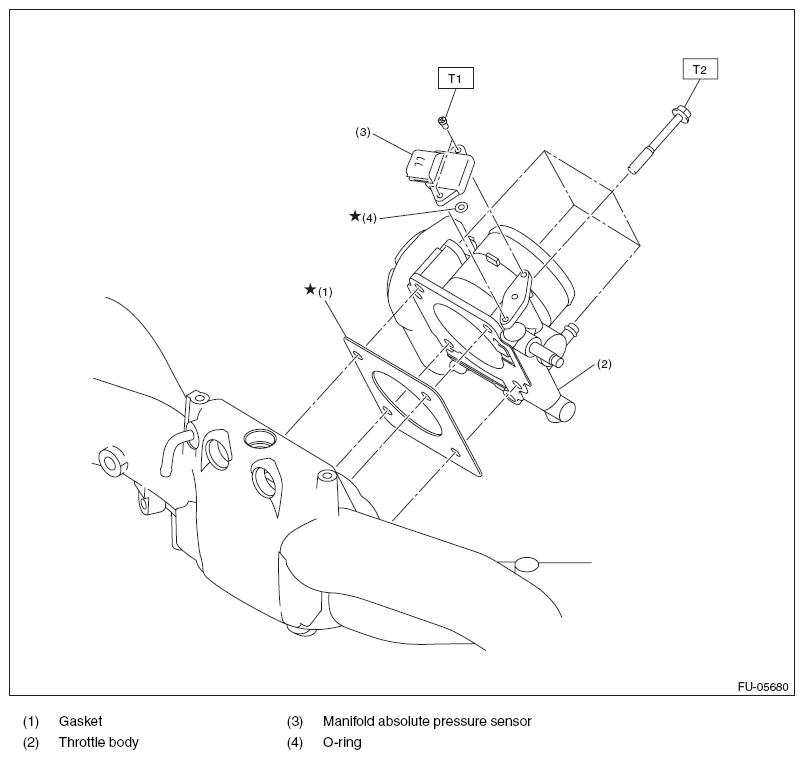

Fig 1: Exploded View Of Air Intake System
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 8 (0.8, 5.9)
