Speed Control System (2.5L): General Description: Specification

Accelerator pedal

Stroke

At pedal pad

50 - 59 mm (1.97 - 2.32 in)

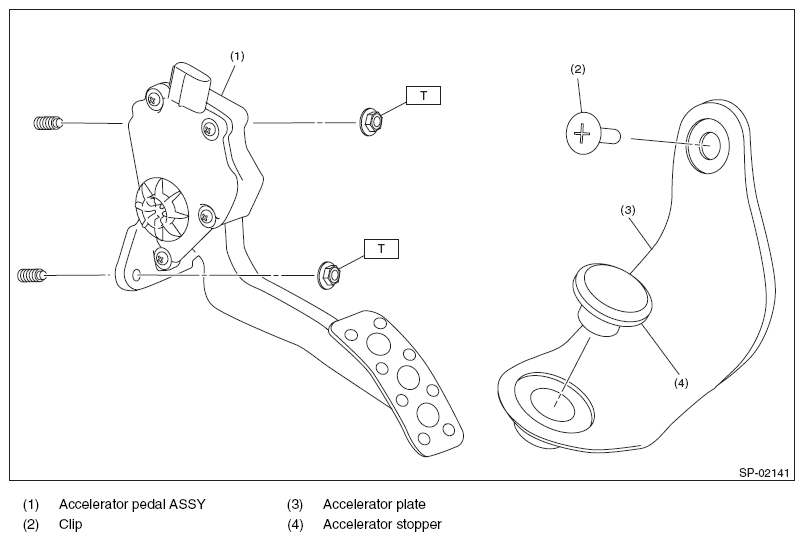

Fig 1: Accelerator Pedal Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
