Exhaust Side

Install in the reverse order of removal.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

• RH side

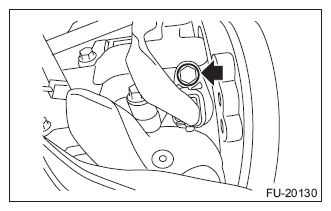

  Fig 1: Locating Camshaft Position Sensor Bolt - RH Side

  Courtesy of SUBARU OF AMERICA, INC.
• LH side

Fig 2: Locating Camshaft Position Sensor Bolt - LH Side

Courtesy of SUBARU OF AMERICA, INC.
