Exhaust Side

Install in the reverse order of removal.

Tightening torque:

T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

T2: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

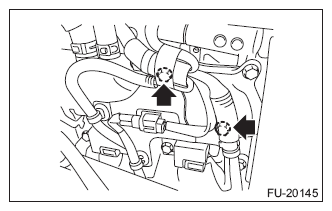

Fig 1: Oil Flow Control Solenoid Valve Bolts Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 2: Oil Flow Control Solenoid Valve Bolts Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
