Pressure Regulator & Damper Assembly: Disassembly

Remove the fuel pipe protector from the pressure regulator and damper assembly.

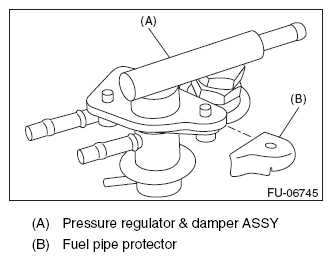

Fig 1: Removing Fuel Pipe Protector From Pressure Regulator
Courtesy of SUBARU OF AMERICA, INC.
Remove the pulsation damper and fuel pipe gasket from the fuel holder assembly, and remove the pressure regulator from the fuel holder assembly.

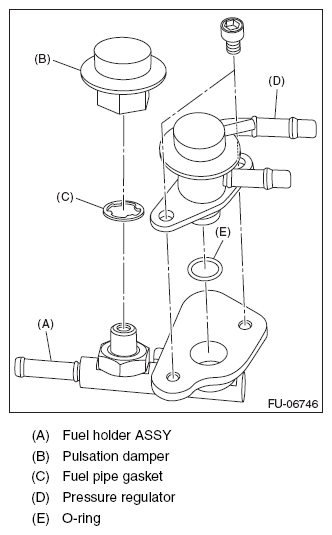

Fig 2: Removing Pulsation Damper And Fuel Pipe Gasket From Fuel Holder Assembly
Courtesy of SUBARU OF AMERICA, INC.
