Pulsation Damper Assembly: Disassembly

Remove the pulsation damper and fuel pipe gasket from the fuel by-pass pipe.

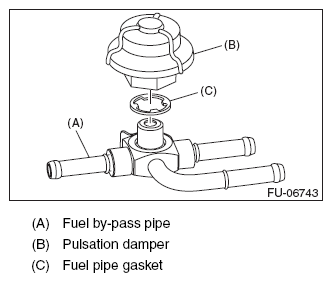

Fig 1: Removing Pulsation Damper And Fuel Pipe Gasket From Fuel By-Pass Pipe

Courtesy of SUBARU OF AMERICA, INC.
