Unit Inspection
 Courtesy of SUBARU OF AMERICA, INC.
|

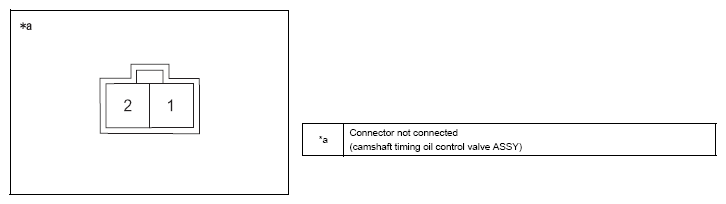

- Inspection of camshaft timing oil control valve ASSY
- Measure the resistance between the terminals.
STANDARD VALUE RESISTANCE SPECIFICATION
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - 2 |
20°C {68°F} |
6.85 to 7.65 Ω |
