Crankshaft Position Sensor (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
    G11258373Courtesy of SUBARU OF AMERICA, INC.

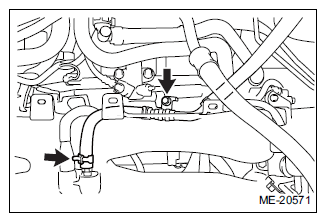

  2. Vacuum tube connector hose disconnection (transmission M/T)
    1. Move the hose clamp and disconnect the vacuum tube connector hose from the intake manifold ASSY.
    2. Remove the bolt and disconnect the vacuum tube connector hose.
    G11258374Courtesy of SUBARU OF AMERICA, INC.

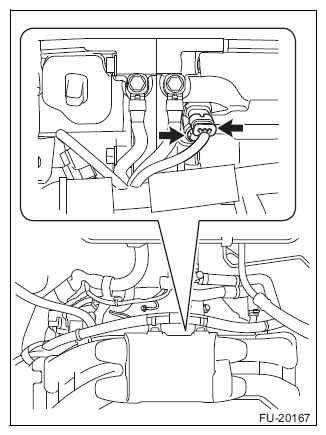

  3. Removal of crankshaft position sensor
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt, and remove the crankshaft position sensor.
