Engine Oil Temperature Sensor (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of air cleaner case SUB-ASSY (Refer to V-BELT (FA20) , Step 1)
  3. Engine oil temperature sensor removal
    1. Disconnect the connector for the engine oil temperature sensor.

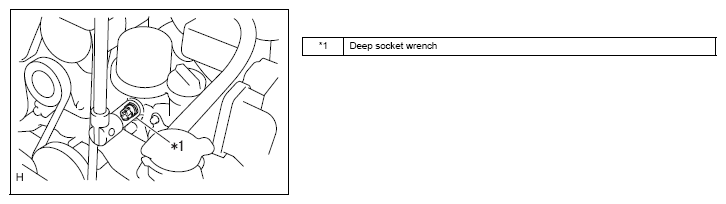

      G12586446Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the engine oil temperature sensor.
